APC SMX1000C Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb

  • MPN: SMX1000C
  • UPC: 731304401124
  • PPN: APC-SMX1000C

CAD

$1701.49

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

  • 1000VA/900W line interactive pure sine wave 2U rack/tower UPS (rail kit SU032A sold separately)
  • Add up to 5 external battery packs (SMX48RMBP2U)
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Graceful shutdown of physical servers, virtual machines and HCI Clusters
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Documentation & Downloads

Specifications

Additional

Capacity1000 VA / 900 W
Maximum Input Current12 A
Output Connections8 NEMA 5-15R
Waveform TypeSine wave
Battery TypeLead-Acid battery
Full Load Runtime7 min 15 s at 900 W
Input ConnectionNEMA 5-15P
Rack Height2U
Cord Length8 ft (2.44 m)
Mounting ModeRack-mounted with kit, Two post mountable
Country of OriginPhilippines
RoHS ComplianceCompliant with Exemptions
Battery ReplacementAPCRBC116
Operating Temperature Range32 to 104 6F (0 to 40 6C)
Acoustic Noise Level40 dBA
Communication PortsSmartConnect Ethernet, USB, SmartSlot
Input Voltage120 V
Output Voltage120 V
Overcurrent Protection60 A
TopologyLine Interactive
Typical Recharge Time3 h
Half Load Runtime19 min 48 s at 450 W
Form Factor2U Rack/Tower Convertible
Dimensions (H x W x D)17.01 in x 3.50 in x 19.29 in (43.2 cm x 8.9 cm x 49 cm)
Weight50.40 lb (22.86 kg)
ColorBlack
CertificationscUL Listed, ENERGY STAR V2.0 (USA)
Surge Energy Rating600 J
Mercury FreeYes
Storage Temperature Range5 to 113 6F (-15 to 45 6C)
Heat Dissipation82 Btu/h

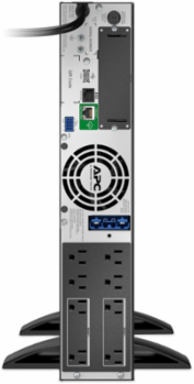

Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb

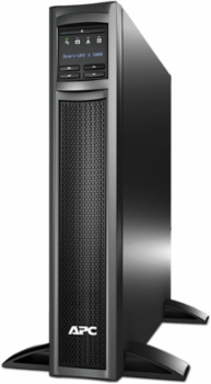

Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb

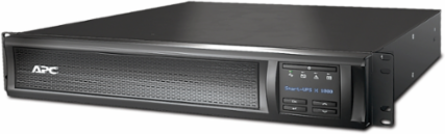

Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb

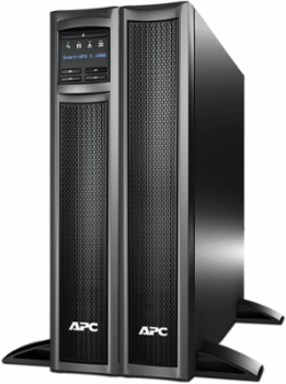

Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb
Smart-UPS X 1000VA Line Interactive 2U Rack/Tower, 8 NEMA 5-15R, 120V, 50.40 lb
