APC

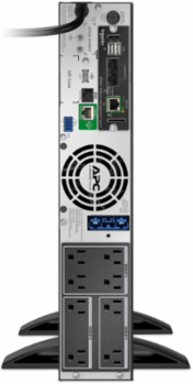

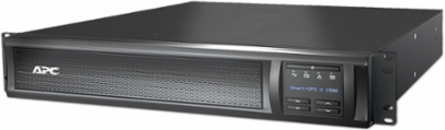

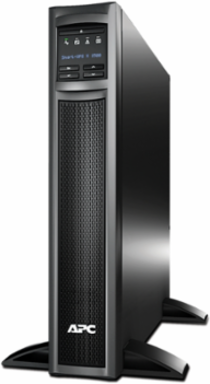

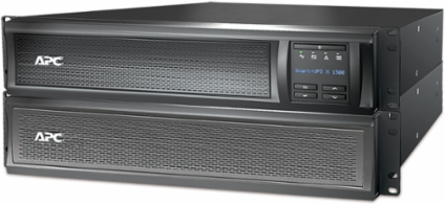

APC SMX1500RM2UCNC Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA

  • MPN: SMX1500RM2UCNC
  • UPC: 731304401148
  • PPN: APC-SMX1500RM2UCNC

CAD

$3402.99

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

Features

  • 1440VA/1350W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • Add up to 5 external battery packs (SMX48RMBP2U)
  • Cloud-based remote power monitoring via SmartConnect Ethernet Port
  • Preinstalled NMC for network-based UPS monitoring & management
  • 1-Year Secure Network Management Card subscription included
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications
  • Graceful shutdown of physical servers, virtual machines and HCI Clusters

Documentation & Downloads

Specifications

Additional

Rated Power1440 VA
Input Voltage120 V
Input Current12 A
Waveform TypeSine wave
Rack Units2U
Weight54.72 lb (24.82 kg)
Output Connection8 x NEMA 5-15R
Battery Voltage48 V
Cable Length8 ft (2.44 m)
Operating Frequency50/60 Hz 3 Hz
Heat Dissipation133 Btu/h
Storage Altitude0-50,000 ft
Storage Temperature5-113 F (-15-45 C)
Warranty36 months
ColorBlack
Mount Positionfront
Power Rating1350 W
Output Voltage120 V
Overcurrent Protection60 A
TopologyLine Interactive
Dimensions (H x W x D)3.5 in x 17.01 in x 19.29 in
Input ConnectionNEMA 5-15P
Battery TypeLead-Acid battery
Typical Recharge Time3 h
Surge Energy Rating600 J
Acoustic Level40 dBA
Operating Altitude0-10,000 ft
Ambient Operating Temperature32-104 F (0-40 C)
Relative Humidity0-95%
Country of OriginVietnam
CompliancecUL Listed, ENERGY STAR V2.0 (USA), RoHS Compliant with Exemptions, Mercury Free
Replacement BatteryAPCRBC115
Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA
Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA
Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA
Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA
Smart-UPS X 1500VA Line Interactive 2U Rack/Tower, 120V, 8x 5-15R NEMA
