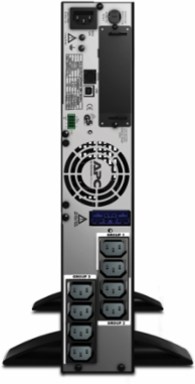

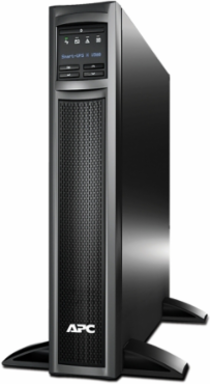

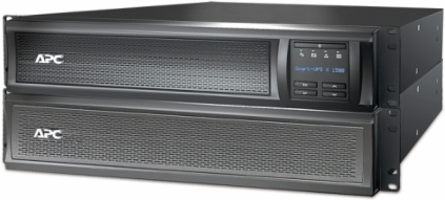

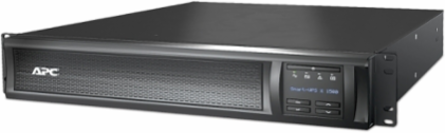

APC SMX1500RMI2U Smart-UPS X 1500VA Rack/Tower Convertible 2U Sine Wave Output 230V 8x C13 IEC
- MPN: SMX1500RMI2U
- UPC: 731304268598
- PPN: APC-SMX1500RMI2U
CAD
$2544.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 1500VA Rack/Tower Convertible 2U Sine Wave Output 230V 8x C13 IEC
Features
- Auto recognition of external batteries — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- EPO — Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Multiple switched outlet groups — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Plug-and-Play external batteries — Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA
- Waveform Type
- Sine wave
- Topology
- Line interactive
- Surge Energy Rating
- 645 J
- Emergency Power Off (EPO)
- Yes
- Input Frequency
- 50/60 Hz ± 3 Hz
- Runtime at 500 W
- 35 min
- Runtime at 1000 W
- 15 min
- Runtime at 1600 W
- 7 min
- Height
- 8.9 cm (3.5 in)
- Width
- 43.2 cm (17.0 in)
- Net Weight
- 28.64 kg (63 lb)
- Replacement Battery
- APCRBC133
- Color
- Black
- Form Factor
- Rack/Tower Convertible 2U
- RoHS
- Compliant
Input Voltage230 V
Output Connections10 IEC320 C13
Input Connection TypeIEC 320 C14
Interface PortsRJ-45 Serial, USB, SmartSlot
Input Voltage Range160 - 286 V (adjustable 150 - 300 V)
Runtime at 200 W1 h 24 min
Runtime at 700 W24 min
Runtime at 1400 W9 min
Runtime at Full Load5 min
Depth49.0 cm (19.29 in)
Rack Height2U
Battery TypeMaintenance-free sealed lead-acid
Typical Recharge Time (hours)3
Product OrientationRack
ApprovalsCE, EAC, RCM, VDE
