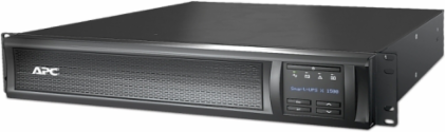

APC SMX1500RMI2UNC Smart-UPS X, 1500VA, 2U Rack/Tower Convertible, 230V, 8x C13 IEC, Sine Wave
- MPN: SMX1500RMI2UNC
- UPC: 731304281702
- PPN: APC-SMX1500RMI2UNC
CAD
$3865.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X, 1500VA, 2U Rack/Tower Convertible, 230V, 8x C13 IEC, Sine Wave
Features
- Auto recognition of external batteries — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- EPO — Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High frequency design — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

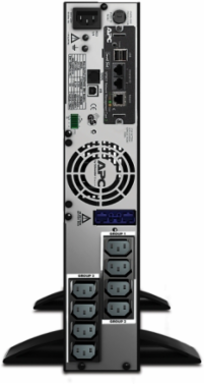

- Multiple switched outlet groups — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Plug-and-Play external batteries — Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Preinstalled network management card — Provides for remote management and control of the UPS over a network out of the box.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

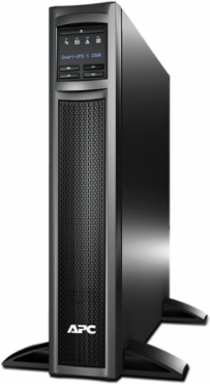

- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Remote UPS management — Enable management of your UPS by connecting it directly to the network.

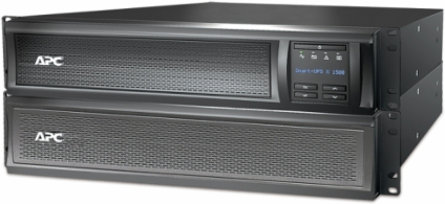

- Scalable runtime — Allows additional run time to be quickly added as needed.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1500 VA
- Input Voltage
- 230 V
- Output Connections
- 10 IEC320 C13
- Battery Type
- Lead-acid battery
- Topology
- Line interactive
- Width
- 17.01 in (43.2 cm)
- Cord Length
- 6 ft (1.8 m)
- Rack Height
- 2U
- RoHS
- Compliant
- Interface Port(s)
- SmartSlot, USB, Serial (RJ45)
Nominal Output Voltage230 V
Waveform TypeSine wave
Input Connection TypeIEC 320 C14
Surge Energy Rating645 J
Height3.5 in (8.9 cm)
Depth19.29 in (49.0 cm)
Product OrientationRack
ApprovalsC-Tick, CE, EAC, VDE, RCM, EN62040-1, EN62040-2
Warranty3 years repair or replace (excluding battery), 2 years battery
