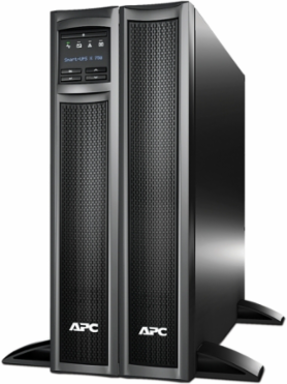

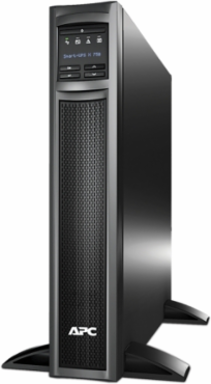

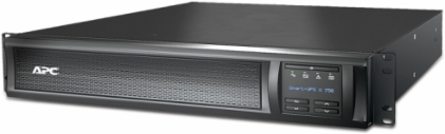

APC SMX750INC Smart-UPS X 750VA Line Interactive Rack/Tower 2U 230V Sine Wave Output
- MPN: SMX750INC
- UPC: 731304327745
- PPN: APC-SMX750INC
CAD
$2746.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 750VA Line Interactive Rack/Tower 2U 230V Sine Wave Output
Features
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency — Reduces utility costs, generates less heat.
- Intelligent Card Slot — Customize UPS capabilities with management cards.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Preinstalled network management card — Provides for remote management and control of the UPS over a network out of the box.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 750 VA / 600 W
- Input Voltage
- 230 V
- Input Frequency
- 50/60 Hz ±3 Hz (auto sensing)
- Waveform Type
- Sine wave
- Surge Energy Rating
- 645
- Input Connection Type
- IEC 320 C14
- Switched Outlet Groups
- 1
- Typical Recharge Time
- 3 hours
- Mount Position
- Front
- Depth
- 19.29 in (49.0 cm)
- Net Weight
- 22.9 kg (50.3 lb)
- Replacement Battery
- APCRBC116
- Approvals
- CE, EAC, RCM, VDE, EN62040-1, EN62040-2
- Warranty
- 3 years repair or replace (excluding battery), 2 years for battery
Nominal Output Voltage230 V
Input Voltage Range160-286 V (150-300 V max adjustable)
Output Frequency47-53 Hz for 50 Hz nominal; 57-63 Hz for 60 Hz nominal
TopologyLine interactive
Output Connections10
Interface PortsRJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB (includes preinstalled AP9631 network management card)
Emergency Power Off (EPO)Yes
Rack Height2U
Width17.01 in (43.2 cm)
Height3.5 in (8.9 cm)
Battery TypeMaintenance-free sealed lead-acid, leak proof
ColorBlack
RoHSCompliant
