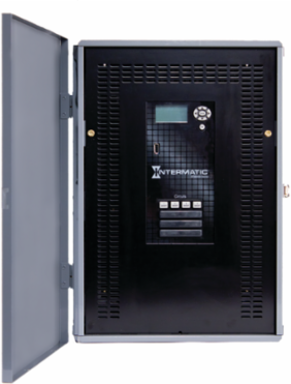

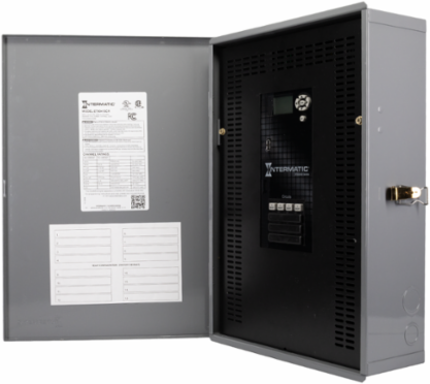

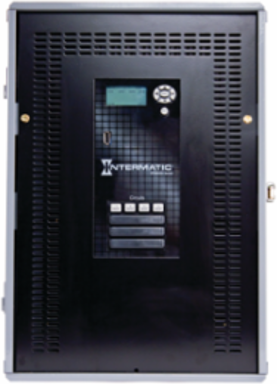

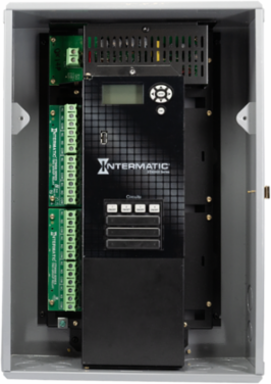

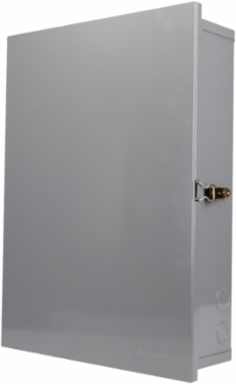

Intermatic ET90415CR Astronomic 365-Day 4-Circuit Electronic Control 120-277 VAC
Intermatic ET90415CR Astronomic 365-Day 4-Circuit Electronic Control 120-277 VAC
- MPN: ET90415CR
- UPC: 078275124912
- PPN: INT-ET90415CR
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1820.11/ EA
Description
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App provides real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Features
- Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
- Over 2,000 events plus holiday schedules; Allows for simple override control when paired with MS-101-WH Momentary Switch (sold separately)
- Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
- 30 A rated contacts
- 100-hour supercapacitor eliminates the need for batteries
- USB connection for uploading, downloading and transferring programs
- Easy-to-follow on-screen menus for programming to-the-minute accuracy
- Non-volatile memory protects programming indefinitely
- Firmware can be upgraded in-field via USB or Ethernet
- Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
Specifications
Specifications
- Input Voltage Rating Range(s)
- 120-277 VAC, 50/60 Hz
- Color
- Gray
- Marketing Description
- The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App provides real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
- Length
- NA NA
- Width
- 12.7 in
- Country of Origin
- Mexico
Warranty Period3-Year limited
ApplicationsIndoor Lighting Control;Machinery & Pump Controls;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Height17.9 in
WeightNA lbs
Depth5.4 in
