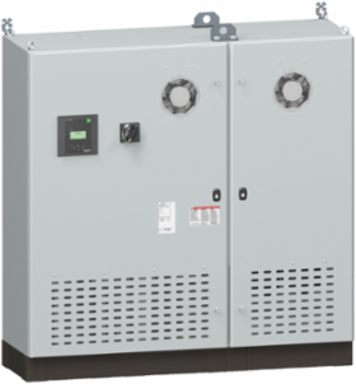

Schneider Electric VA050M41G60 Automatic PowerLogic PFC Capacitor Bank 50 kvar, 600V, 3 Poles

Automatic PowerLogic PFC Capacitor Bank 50 kvar, 600V, 3 Poles
  • MPN: VA050M41G60
  • PPN: SCH-VA050M41G60

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric Automatic PowerLogic PFC Capacitor Bank is engineered to enhance power factor correction in various industrial applications. With a capacity of 50 kvar and designed for 600V operation across three poles, this capacitor bank plays a crucial role in improving energy efficiency and reducing electricity costs. Its robust design ensures reliable performance, making it an essential component for optimizing electrical systems while contributing to overall grid stability. Ideal for large-scale operations, this installation-friendly solution helps maintain optimal power quality and performance.

Specifications

Reactive Power Rating
50 kvar
Rated Short-Time Withstand Current
65 kA 4 cycles
Operating Mode
Automatic
Controller Type
PowerLogic PFC Controller VPL12
Tuning Factor
4.2
Step Composition
2x12.5 + 25
Mounting Location
Indoor
Net Weight
265 kg (584 lb)
Standards
CSA C22.2 No 190-M1985, UL 810, UL 508 A
Operating Altitude
<= 2000 m (6562 ft)
Average Ambient Air Temperature for Operation
25 °C annual, 35 °C over 24 hours
Color
Gray RAL 7035
RoHS Compliance
Compliant
Mercury Free
Yes
Voltage600 V AC 60 Hz
Total Harmonic Distortion (THDU)0-7 %
Poles3
Tuning Frequency252 Hz
Power Per Step12.5 kvar
Protection TypeMain lug
Dimensions (H x W x D)1200 mm x 1300 mm x 400 mm (47.24 in x 51.18 in x 15.75 in)
NEMA Degree of ProtectionNEMA 1 with gasket
Product CertificationscCSAus
Ambient Air Temperature for Operation-10 to 46 °C (14 to 115 °F)
Relative Humidity0-95 %
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
