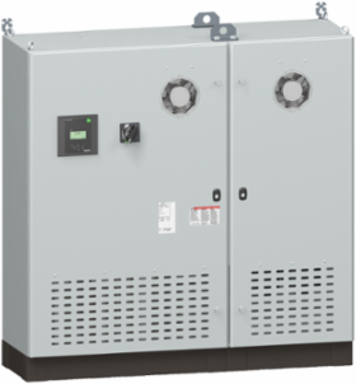

Schneider Electric VA100M41G60 PowerLogic PFC Capacitor Bank 100 kvar 600V 3P Automatic

MPN: VA100M41G60
PPN: SCH-VA100M41G60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for efficiency and reliability, this PowerLogic PFC Capacitor Bank from Schneider Electric provides 100 kvar of reactive power compensation at 600V in a three-phase configuration. Designed to automatically enhance power factor correction, it plays a crucial role in improving energy efficiency within electrical systems, reducing penalty costs associated with low power factors. Its robust design ensures stable performance, making it a valuable asset for industrial applications looking to optimize their electrical installations. With this capacitor bank, you can enhance system efficiency while maintaining ease of operation.

Documentation & Downloads

Specifications

Key Specifications

Accessibility For Operation	front
Operating Mode	automatic
Controller Type	PowerLogic PFC Controller VPL12
Reactive Power Rating	100 kvar
Colour	grey RAL 7035)

Range Of Product	PowerLogic
Product Or Component Type	capacitor bank
Series Name	PowerLogic PFC Capacitor + Detuned Reactor
Network Rated Voltage	600 V AC 60 Hz
Device Short Name	PowerLogic PFC detuned

Complementary

[Icw] Rated Short-Time Withstand Current	65 kA 4 cycles
Tuning Factor	4.2
Mounting Location	indoor
Nema Degree Of Protection	NEMA 1 with gasket
Poles Description	3P
Maximum Permissible Voltage	1.1 x Un 8 hours over 24 hours)
[Thdu] Total Harmonic Distorsion	0-7 %
Step Composition	2x25 + 50

Power Per Step	25 kvar
Net Weight	265 kg
Width	1300 mm
Height	1200 mm
Protection Type	main lug
Tuning Frequency	252 Hz
Depth	400 mm

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP2109003
Toxic Heavy Metal Free	Yes
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information
Eu Rohs Directive	Compliant

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI2109003

Environment

Product Certifications	cCSAus
Standards	CSA C22.2 No 190-M1985 \|\| UL 810 \|\| UL 508 A
Relative Humidity	0-95 %

Ambient Air Temperature For Operation	-10-46 °C
Average Ambient Air Temperature For Operation	25 °C annual) \|\| 35 °C over 24 hours)
Operating Altitude	<= 2000 m
