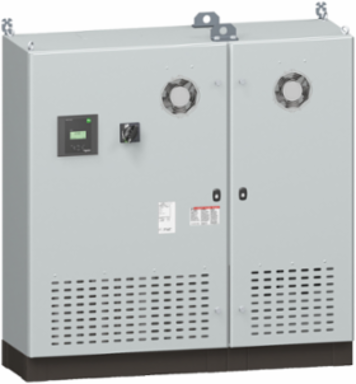

Schneider Electric VA050M41G6S PowerLogic PFC Smart Capacitor Bank 50 kVAR, 600V, Indoor, 3P

PowerLogic PFC Smart Capacitor Bank 50 kVAR, 600V, Indoor, 3P
  • MPN: VA050M41G6S
  • PPN: SCH-VA050M41G6S

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric VA050M41G6S PowerLogic PFC Smart Capacitor Bank is an advanced solution designed to enhance power factor correction with a capacity of 50 kVAR at 600V, specifically crafted for indoor environments. This three-phase capacitor bank provides reliable performance and operational efficiency, helping to reduce energy costs and improve the overall power quality of electrical systems. Its smart technology integration allows for real-time monitoring and control, making it an excellent choice for those looking to optimize their power management and reduce the risk of energy penalties due to low power factor.

Specifications

Reactive Power Rating
50 kvar
Rated Short-Time Withstand Current
65 kA 4 cycles
Operating Mode
Automatic
Tuning Factor
4.2
Width
1300 mm (51.18 in)
Net Weight
265 kg (584.23 lb)
Mounting Location
Indoor
NEMA Degree of Protection
NEMA 1 with gasket
Standards
CSA C22.2 No 190-M1985, UL 810, UL 508 A
RoHS Compliance
Compliant, Exemption Yes
Relative Humidity
0-95 %
Ambient Air Temperature for Operation
-10 to 46 °C (14 to 115 °F)
Color
Grey RAL 7035
Device Short Name
PowerLogic PFC Smart
Circularity Profile
ENVEOLI2109003
Reach Regulation
Contains SVHC above threshold
Voltage600 V AC 60 Hz
Power per Step12.5 kvar
Tuning Frequency252 Hz
Height1200 mm (47.24 in)
Depth400 mm (15.75 in)
Poles Description3P
Protection TypeMain lug
Material / Construction InfoToxic Heavy Metal Free, Mercury Free
CertificationscCSAus
Environmental DisclosureENVPEP2109003
Operating Altitude<= 2000 m (6561.68 ft)
Accessibility For OperationFront
Series NamePowerLogic PFC Capacitor + Detuned Reactor
Step Composition2x12.5 + 25
Product TypeCapacitor bank
