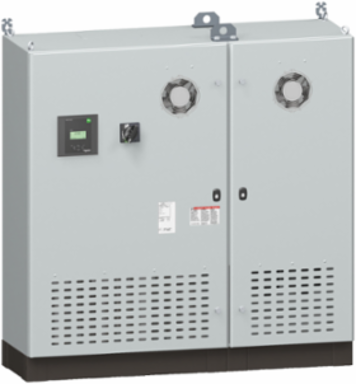

Schneider Electric VA100B41G60 PowerLogic PFC Capacitor Bank 100 kvar, 600 V, Automatic, 265 kg
- MPN: VA100B41G60
- PPN: SCH-VA100B41G60
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerLogic PFC Capacitor Bank from Schneider Electric is engineered to enhance power factor correction in various industrial applications. With a capacity of 100 kvar and a voltage rating of 600 V, this automatic capacitor bank effectively optimizes energy use by mitigating reactive power, thereby improving system efficiency. Weighing 265 kg, it is built for robust performance, ensuring reliability in managing electrical systems while facilitating substantial energy savings and reducing overall electricity costs.
Documentation & Downloads
Specifications
Key Specifications
| Accessibility For Operation | front |
|---|---|
| Operating Mode | automatic |
| Controller Type | PowerLogic PFC Controller VPL12 |
| Reactive Power Rating | 100 kvar |
| Colour | grey RAL 7035) |
| Range Of Product | PowerLogic |
|---|---|
| Product Or Component Type | capacitor bank |
| Series Name | PowerLogic PFC Capacitor + Detuned Reactor |
| Network Rated Voltage | 600 V AC 60 Hz |
| Device Short Name | PowerLogic PFC detuned |
Complementary
| Power Per Step | 25 kvar |
|---|---|
| Net Weight | 265 kg |
| Width | 1300 mm |
| Height | 1200 mm |
| Protection Type | circuit breaker protection |
| Tuning Frequency | 252 Hz |
| Depth | 400 mm |
| Step Composition | 2x25 + 50 |
| Tuning Factor | 4.2 |
|---|---|
| Mounting Location | indoor |
| Nema Degree Of Protection | NEMA 1 with gasket |
| Poles Description | 3P |
| Maximum Permissible Voltage | 1.1 x Un 8 hours over 24 hours) |
| [Thdu] Total Harmonic Distorsion | 0-7 % |
| Breaking Capacity | 50 kA |
Environment
| Product Certifications | cCSAus |
|---|---|
| Standards | CSA C22.2 No 190-M1985 || UL 810 || UL 508 A |
| Relative Humidity | 0-95 % |
| Ambient Air Temperature For Operation | -10-46 °C |
|---|---|
| Average Ambient Air Temperature For Operation | 25 °C annual) || 35 °C over 24 hours) |
| Operating Altitude | <= 2000 m |
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2109003 |
| Toxic Heavy Metal Free | Yes |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
| Eu Rohs Directive | Compliant |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI2109003 |
