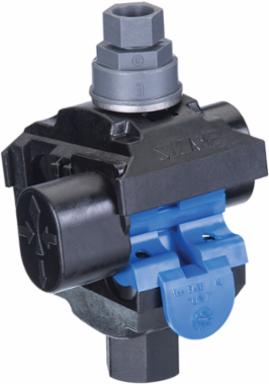

Ideal Industries BTC500-14 B-TAP® Insulation Piercing Tap Connector, Main 750-3/0,Tap 10-14

B-TAP® Insulation Piercing Tap Connector, Main 750-3/0,Tap 10-14

Ideal Industries BTC500-14 B-TAP® Insulation Piercing Tap Connector, Main 750-3/0,Tap 10-14

MPN: BTC500-14
UPC: 781789454511
PPN: IDL-BTC500-14

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$187.02/ EA

Loading add to cart quantity...

Description

Safe, dependable, and easy. No other connector offers as much as the B-TAP® Insulation Piercing Connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap, and much more.Self-insulating and weather-proof, B-TAP® connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulation-piercing design eliminates downtime and power interruptions.That translates into a 60% installed savings compared to split bolts. The exclusive breakaway torque nut simply snaps off when UL torque requirements are met. No more guesswork! B-TAP® connectors can be safely installed on energized systems, eliminating power interruptions and downtime.

Features

Breakaway torque nut snaps off when UL torque requirements are met
Second nut remains for easy connector removal
Self-insulated housing eliminates the need for tape. Safely installs on energized systems
Grease-filled end cap seals end of conductor for superior weather protection
Grease-filled boots protect copper teeth from corrosion and prevent arcing
Hardened copper teeth pierce insulation and bite into conductors
Rated to 90°C and 600V
Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
Full line has wire range from #14 to 750 kcmil

Downloads
