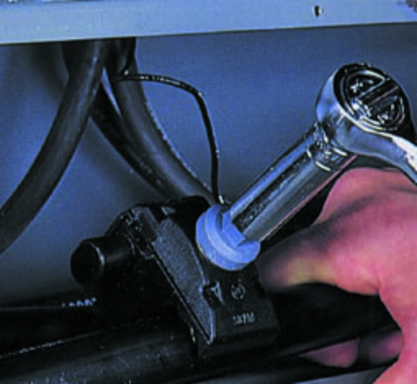

Ideal Industries BTC500-1/0 B-TAP Insulation-Piercing Tap Connectors 5/8 Inch Socket, 600V, 350-1/0 Tap Range
- MPN: BTC500-1/0
- UPC: 781789454535
- PPN: IDL-BTC500-1/0
CAD
$318.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
B-TAP Insulation-Piercing Tap Connectors 5/8 Inch Socket, 600V, 350-1/0 Tap Range
Features
- Breakaway torque nut snaps off when UL torque requirements are met
- Second nut remains for easy connector removal
- Self-insulated housing eliminates the need for tape. Safely installs on energized systems
- Grease-filled end cap seals end of conductor for superior weather protection
- Grease-filled boots protect copper teeth from corrosion and prevent arcing
- Hardened copper teeth pierce insulation and bite into conductors
- Rated to 90°C and 600V
- Can be used on Cu-Cu, Al-Al, Cu-Al, and Al-Cu when used in non-tension, insulated applications
- Full line has wire range from #14 to 750 kcmil
Specifications
Key Specifications
- Conducter Range Run
- 500-4/0
- Voltage Rating
- 600V
- Torque (In. Lbs.)
- 330
Conducter Range Tap350-1/0
Socket Size (Inches)5/8
No. of Bolts2
