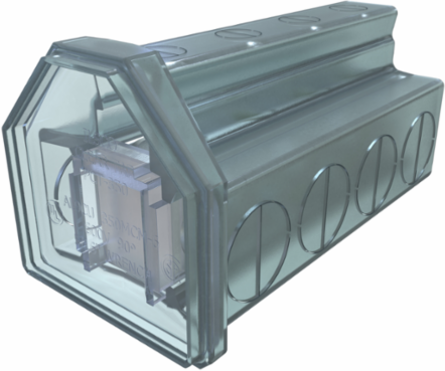

ILSCO PCT-4-350 Insulated Aluminum Multi-Tap Connector, 4 Ports, 350-6 AWG, 600V, UL Listed
- MPN: PCT-4-350
- UPC: 783669700589
- PPN: ILC-PCT-4-350
CAD
$130.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Insulated Aluminum Multi-Tap Connector, 4 Ports, 350-6 AWG, 600V, UL Listed
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.648 in | 67.2592 mm |
|---|---|
| Weight | 0.902 lbs |
| Length | 5.249 in | 133.3246 mm |
|---|---|
| Width | 2.66 in | 67.564 mm |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 5/16 |
|---|---|
| Height BX (IN) | 4.25 |
| Length (mm) | 133.3246 |
| Max Insulation OD (mm) | 25.019 |
| Width BX (IN) | 7.75 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 67.2592 |
| Max Insulation OD (IN) | 0.985 |
| Weight BX (LB) | 3.0191 |
| Width (mm) | 67.564 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 4 |
| Number of Ports / Wireways | 4 |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 4 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 350 kcmil - 6 Str |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 350 kcmil - 6 Str |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 350 Amps |
|---|
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366970058 |
| Carton Quantity Description | STD PACK QTY 3 |
|---|---|
| NEMA Code | S-588-4 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 275 |
| Wire Binding Screw Size | 11/16 |
|---|
Color
| Color | Clear |
|---|
Environment and Temperature
| Environmental Conditions | Cold temperature rated to -45°C |
|---|---|
| Temperature Rating | 90°C |
| Flammability Rating | Insulation rated per UL 94 |
|---|
