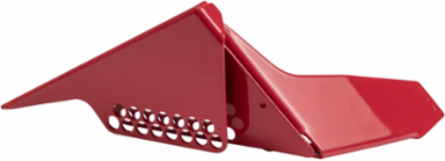

Brady 65669 Steel Ball Valve Lockout Device 1-1/4 to 3 Inch Pipe Diameter, Powder-Coated Finish
- MPN: 65669
- UPC: 754473656690
- PPN: BRD-65669
- UNSPSC: 39121909
CAD
$64.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

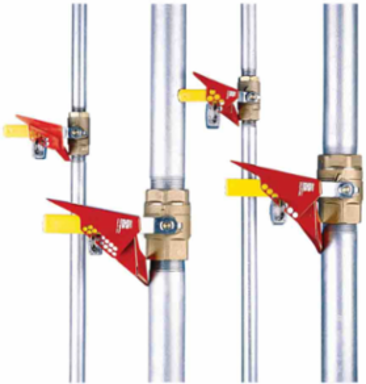

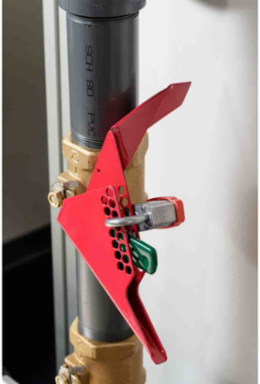

The easy-to-use, single piece design of Ball Valve Lockouts from Brady® makes them the perfect tool for securing your valve handles in the off position.
Features
- Locks out ball valve sizes from 1.25 in. to 3 in. (fits standard 9/32 in. lock shackle diameters)
- Made of powder-coated steel for superior rust resistance
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Ball Valve Lockout Type | Fits over Handle |
|---|---|
| Color | Red |
| Enables Industry Compliance | OSHA 1910.147 |
| Number of Holes | 15 |
| Primary Noun, Basic Function | Lockout Device |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-23 |
| Lockout Material | Steel |
| SAP B-Number | LOTO-23 |
| Depth (mm/cm/m) | 190.5 mm |
| Dimensions | 4.8 in H x 5 in W x 7.5 in D |
| Height (in/ft/yd) | 4.8 in |
| Hole Inside Diameter (mm/cm/m) | 7.50 mm |
| Maximum Handle Thickness (mm/cm/m) | 10.92 mm |
| Maximum Handle Width (mm/cm/m) | 53.34 mm |
| Maximum Pipe Diameter (in/ft/yd) | 3 in |
| Maximum Service Temperature °C | 93 °C |
| Maximum Shackle Diameter (in/ft/yd) | 0.282 in |
| Maximum Valve Size | 3 in |
| Minimum Pipe Diameter (mm/cm/m) | 31.75 mm |
| Minimum Service Temperature °F | -20 °F |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Pipe Diameter Range (in/ft/yd) | 1-1/4 to 3 in |
| Service Temperature Range °C | -30 °C to 93 °C |
| Sign Size-General | 4.8 in x 5 in |
| Size - Width (mm) | 127.00 mm |
| Valve Size Range | 1.25 to 3 in |
| Width (mm/cm/m) | 127 mm |
| Brand Name | Brady® |
|---|---|
| Conductivity | Conductive |
| Maximum Number of Padlocks | 1 |
| Open or Closed Valve | Closed |
| Risk Type | Mechanical Risk |
| Adhesive (Y/N) | No |
| Coating Material | Powder Coated |
| Material | Steel |
| Depth (in/ft/yd) | 7.5 in |
| Diameter (mm/cm/m) | 15.00 mm |
| Dimensions (Metric) | 127.00 mm W x 121.92 mm H x 15.00 mm Dia x 190.5 mm D |
| Height (mm/cm/m) | 121.92 mm |
| Maximum Handle Thickness (in/ft/yd) | 0.43 in |
| Maximum Handle Width (in/ft/yd) | 1.75 in |
| Maximum Outside Pipe Diameter (mm/cm/m) | 31.75 - 76.20 |
| Maximum Pipe Diameter (mm/cm/m) | 76.2 mm |
| Maximum Service Temperature °F | 200 °F |
| Maximum Shackle Diameter (mm/cm/m) | 7.16 mm |
| Minimum Pipe Diameter (in/ft/yd) | 1.25 in |
| Minimum Service Temperature °C | -30 °C |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Minimum Valve Size (in/ft/yd) | 1.25 in |
| Pipe Diameter Range (mm/cm/m) | 31.75 mm to 76.2 mm |
| Service Temperature Range °F | -20 °F to 200 °F |
| Size - W x H x D (mm) | 127.00 x 121.92 x 190.5 |
| Size of Valve Lever (mm) | 32 - 76 |
| Width (in/ft/yd) | 5 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
