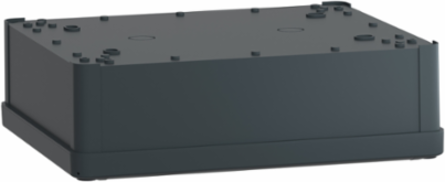

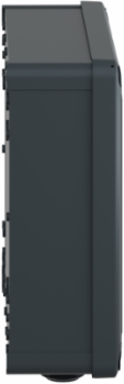

Schneider Electric ZARB18WM Harmony eXLhoist Base Station 18 Relay Outputs 24-240V AC/DC IP66

MPN: ZARB18WM
PPN: SCH-ZARB18WM
UNSPSC: 39111522

$2261.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

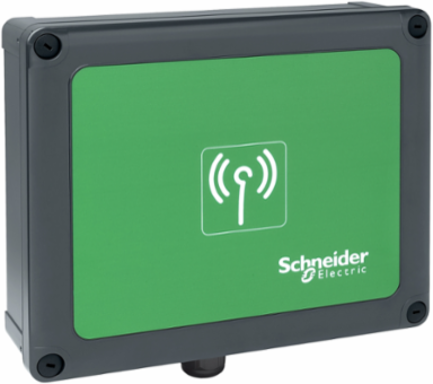

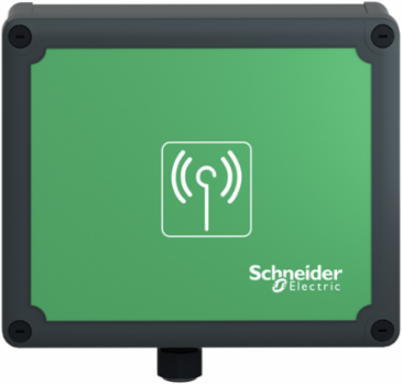

This green base station (Receiver) is designed as receiver for wireless remote control system It has 9 relay outputs with 2 safety relays and 7 auxiliary relay has wired connection cable gland It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP66, making it ideal for operation in harsh (heavy) environments

Features

Ideal for operation in harsh (heavy) environments
Impact resistant (strength), dust resistant (strength), water resistant (strength), and vibration resistant

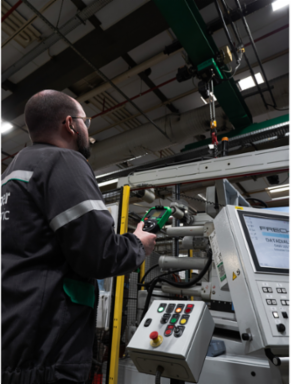

Tailored for hoisting and material handling applications
Wide availability throughout an extensive distribution network

Documentation & Downloads

Specifications

Key Specifications

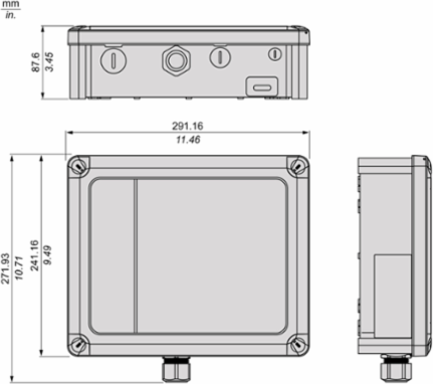

Depth	100 mm

Communications & Management Attributes

Communication Network Type	wireless bluetooth low energy

Number Of Alarms	6 programmable alarms

Complementary Attributes

Maximum Sensing Distance	100 m in free field
Maximum Switching Voltage	240 V AC/DC + 20 %)

Maximum Switching Current	6.8 mA
Us Rated Supply Voltage	24...240 V AC/DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electromagnetic Compatibility	resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
Radio Agreement	ICASA, RSS, ARIB, FCC, ANATEL, SRRC
Certificate Agency	UL, CE, CSA, C-tick, EAC, KC
Local Publishable Date	2026-03-31
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2312040EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1415
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Advanced

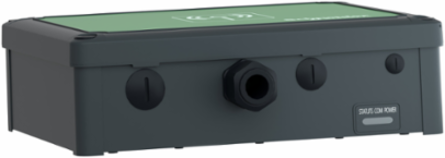

Cable Entry	cable gland
Electrical Durability	100000 cycles
Material	PC (polycarbonate)
Number Of Channels	40
Product Availability	Non-Stock - Not normally stocked in distribution facility
Provided Equipment	internal antenna
Returnability	Yes
Shock Resistance	15 gn 11 ms
Switching Capacity In Va	5 VA DC26 VA AC
Vibration Resistance	0.075 mm 10-55 Hz)
Height Nominal	305 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Product Specific Application	hoisting applications, material handling
Relay Type	motion relay outputs 9 NOauxiliary relay outputs 7 NO, auxiliary relay outputs 2 NC + 2 NO
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	ADVANCED
Product Kit Identifier	N
Device Short Name	ZARB

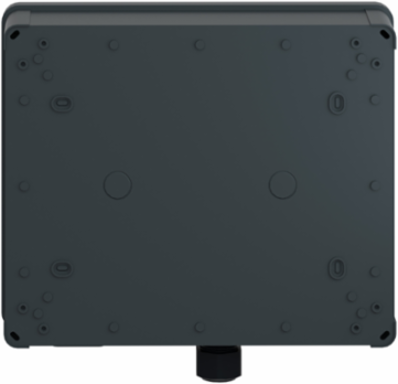

Fixing Mode	4 holes
Mechanical Durability	1000000 cycles
Number Of Relays	18
Product Or Component Type	base station
Range Of Product	Harmony eXLhoist
Service Life	10 year(s)
Sustainable Packaging	No
Transmission Frequency	2.4 GHz
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	280 mm
Customs Code	8517620090

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2312040EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 4
Packaging Without Single Use Plastic	No
Relative Humidity	0-97 %

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312040EN
Ip Degree Of Protection	IP65
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2312040EN
