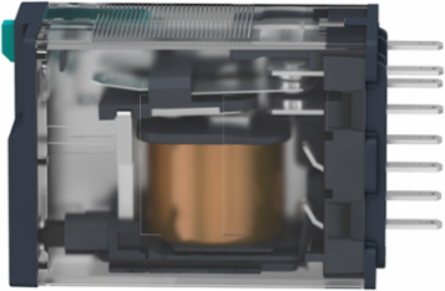

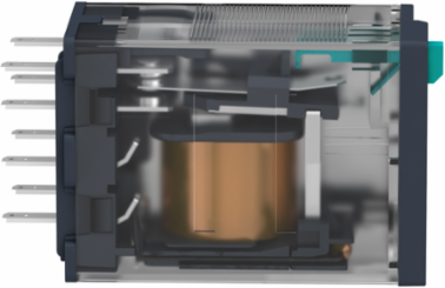

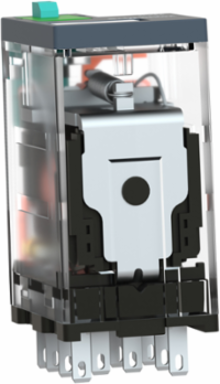

Schneider Electric RXM4AB1BD Harmony Miniature Plug-In Relay 6A 4CO 24V DC
- MPN: RXM4AB1BD
- PPN: SCH-RXM4AB1BD
CAD
$17.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

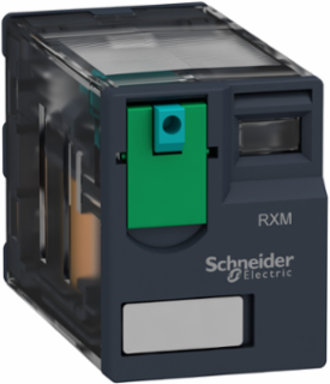

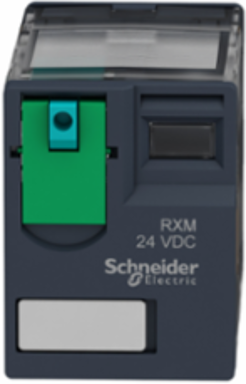

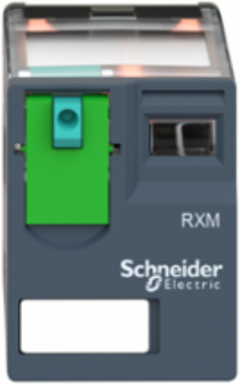

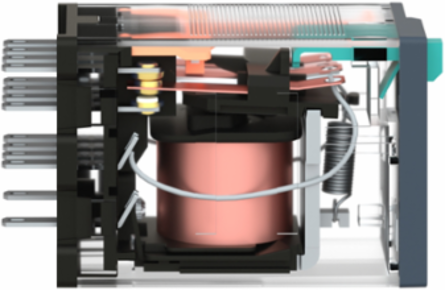

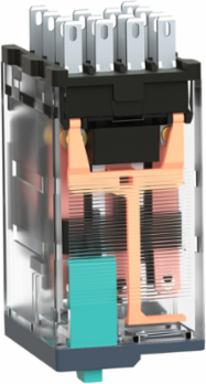

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Features
- Engineered with a 4 C/O contact composition, this miniature plug-in relay allows you to switch four independent electrical circuits at the same time. This multi-channel capability eliminates the need for multiple individual relays, significantly reducing hardware costs and saving valuable DIN rail space within crowded industrial control panels.
- Operating on a standard 24V DC control circuit voltage with a reliable operational limit of 19.2V to 26.4V DC, this electromechanical relay integrates seamlessly with mainstream PLCs, industrial power supplies, and automation controllers. The low coil power consumption of approximately 0.9W minimizes thermal dissipation inside your enclosure, protecting adjacent sensitive electronic components from heat-induced failure.
- Built to manage demanding automation tasks, the silver nickel (AgNi) contacts feature a conventional enclosed thermal current rating of 6A at 250V AC or 28V DC (resistive load). This optimal current density ensures dependable multi-pole switching for intermediate industrial loads, pilot duties, and small motor control loops without the risk of contact welding.
- Equipped with an integrated, one-step lockable test button and a mechanical status indicator, this relay allows technicians to manually actuate the contacts during setup, maintenance, or fault isolation. This mechanical override speeds up point-to-point testing and diagnosis, helping you verify downstream field wiring and control logic before energizing the entire system.

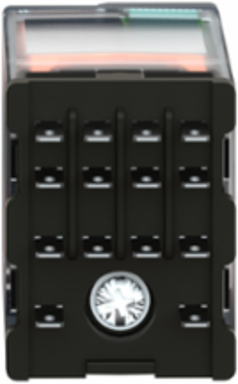

- Featuring a compact, space-saving miniature frame with flat Faston-type pins, the RXM compatibility code ensures perfect plug-and-play matching with standard Schneider Electric Harmony RXZ sockets (such as the RXZE2M114 or screwless push-in RXZE14P). This modular interface streamlines field replacements, reducing equipment downtime during standard preventative maintenance cycles to just a few seconds.
- Built for demanding industrial life cycles, it delivers up to 10,000,000 mechanical operations and is certified under stringent UL 508, CSA C22.2 No 14, and IEC 61810-1 standards. Boasting an IP40 protection rating and an operating temperature range of -40 C to 55 C, it provides consistent, long-term switching reliability even in demanding Canadian manufacturing and industrial processing environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, China, France, United Kingdom, Indonesia, Singapore, United States, ZZ
Physical Attributes

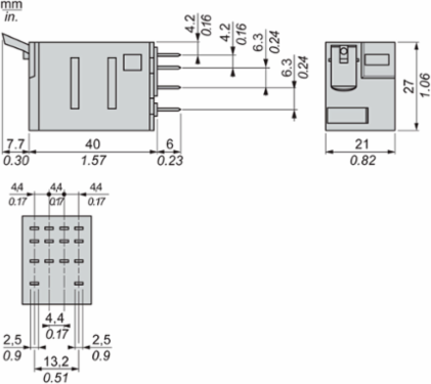

- Cad Overall Depth
- 78.45 mm
Cad Overall Height79 mm
Complementary Attributes
- Control Circuit Type
- DC
- Maximum Switching Capacity
- 1500 VA/168 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current6 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
- Status Led
- without, without
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0048399687, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2927376966
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 650 Ohm 20 °C +/- 10 %
- Contacts Material
- AgNi
- Control Type
- lockable test button
- Load Current
- 6 A 250 V AC6 A 28 V DC
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- miniature relay
- Returnability
- Yes
- Series Name
- RXM series
- Shock Resistance
- 10 gnin operation30 gnnot operating
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 14 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pep Code
- ENVPEP2106019EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Recyclability Potential In %
- 55
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Package Weight(Lbs)
- 35.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load

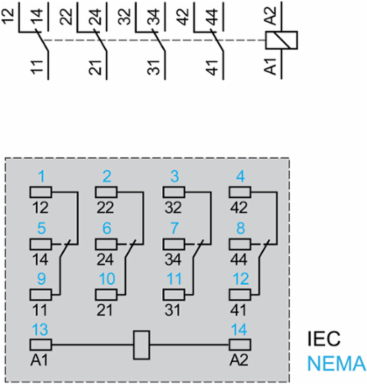

Contacts Composition4 C/O
[Uc] Control Circuit VoltageDC, 24 V
Carbon Footprint Of The Distribution Phase [A4]0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]14 kg CO2 eq., 14.0619233076
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2106019EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption0.9 W
Compatibility CodeRXM
Contacts Type And Composition4 C/O
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms
Safety Reliability DataB10d = 100000

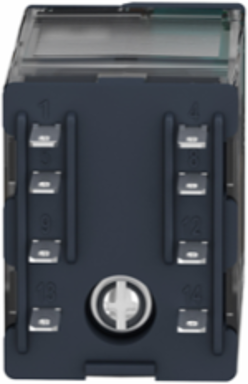

Shape Of Pinflat (faston type)
Software VersionEIME v5.9.1
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Control Circuit Voltage24 V
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh20.418
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Ie] Rated Operational Current6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
[Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint14.3645010733
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106019EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Output Attributes
- Continuous Output Current
- 5 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
