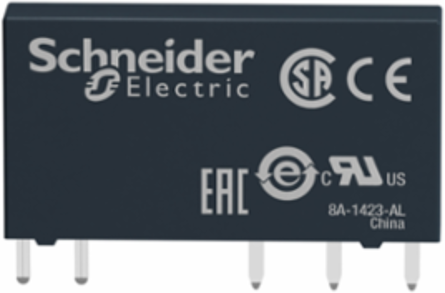

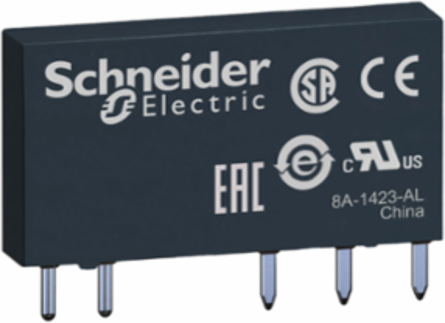

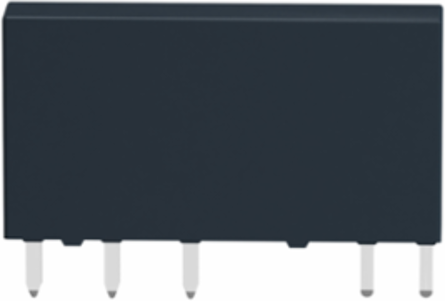

Schneider Electric RSL1AB4BD Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width

  • MPN: RSL1AB4BD
  • PPN: SCH-RSL1AB4BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $10.25

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0

    Features

    • Featuring an exceptionally narrow 6mm width, this interface relay allows you to pack high-density switching capabilities into tight rail spaces. This compact footprint is ideal for modern industrial automation where panel real-estate is at a premium, allowing you to downsize your enclosures without sacrificing system performance or I/O capacity.
    • Engineered with a highly efficient 24V DC coil, this relay is designed for seamless integration with standard Programmable Logic Controller (PLC) and DCS digital outputs. The low power consumption reduces heat dissipation within the cabinet and prevents overloading your control circuit power supplies, ensuring long-term system stability for sensitive automation tasks.
    • Equipped with one Form C (SPDT) contact rated for up to 6 Amps, this versatile interface provides a reliable bridge between low-voltage control logic and higher-power field devices like valves, small motors, or contactor coils. The high-quality silver alloy contacts ensure a long electrical life cycle, reducing the frequency of maintenance shutdowns and replacement costs.
    • The "plug-in" architecture allows the relay to be swapped out in seconds without disconnecting any field wiring from the base. This modular approach, combined with a built-in locking lever and visual status LED, streamlines troubleshooting and drastically reduces Mean Time to Repair (MTTR) during critical production line outages.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, China, Czechia, France, Mexico, Singapore, United States, ZZ
    Depth18.5 mm

    Complementary Attributes

    Maximum Switching Capacity1500 VA, 150 W
    Line Rated Current6 A
    Minimum Switching Capacity120 mW
    Minimum Switching Voltage12 V
    Control Circuit TypeDC
    Maximum Switching Voltage277 V
    Minimum Switching Current100 mA
    Rated Operational Voltage Limits18...33.6 V DC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Contact Operationstandard, standard
    Operating Time5 ms reset, 12 ms
    Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
    Control Circuit Type2DC
    [Uc] Control Circuit VoltageDC, 24 V
    Carbon Footprint Of The Distribution Phase [A4]0.0006967161, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0000326507
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.1280096
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Coil Consumption0.17 W
    Compatibility CodeRSL
    Contacts Type And Composition1 C/O
    Dielectric Strength1000 V AC between contacts4000 V AC between coil and contact
    Load Current6 A 250 V AC 0.5 mm mounting distance
    Mounting Supportsocket or PCB
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT III
    Relay Typeslim interface relay
    Safety Reliability DataB10d = 60000
    Shape Of Pinflat (PCB type)
    Status Ledwithout
    Test Levelslevel A group mounting
    Pep CodeENVPEP2502015EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
    Height Nominal28 mm
    [Ie] Rated Operational Current6 A AC-1/DC-1)IEC/UL
    [Ui] Rated Insulation Voltage250 V IEC277 V cUL
    Drop-out Voltage Threshold>= 0.05 Uc>= 0.05 Uc
    Package Weight(Lbs)5.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Operating Rate<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Shock Resistance5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
    Control Circuit Voltage24 V
    Certificate AgencyCSA, UL, EAC
    Terminals Description Iso N°1(11-12-14)OC, (A1-A2)CO, (11-12-14)OC, (A1-A2)CO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0013780854, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1685459645
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2353
    China Rohs In ScopeYes
    Phenolic Free SolutionYes
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Resistance3390 Ohm at 23 °C +/- 15 %
    Contacts Materialsilver alloy (AgSnO2)
    Control Typewithout lockable test button
    Electrical Durability60000 cycles, 6 A at 250 V, AC-1 C/O
    Mechanical Durability10000000 cycles
    Operating Positionany position
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    ReturnabilityYes
    Series NameRSL series
    Software VersionEIME v5.7.0.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint3 kg CO2 eq.
    Database Version2018-09
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
    Functional-unit Unitunité (unit)
    Energy Model - Manufacturing [A1-a3]Energy model used: China
    Energy Model - Use [B6]Electricity mix; AC; &lt;lt/&gt; 1kV; EU-27
    Recyclability Potential In %70
    Width Nominal5 mm
    [Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536410060

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Carbon Footprint3.2986630167
    Environmental DisclosureENVPEP2502015EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Toxic FreeYes
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502015EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
    Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width
    Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width
    Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width
    Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width
    Harmony Slim Interface Plug-in Relay, 6A, 1 CO, 24V DC, 6mm Width
