Schneider Electric HMISTM6BOX Modular HMI Box, ARM Cortex-A8, 1 GB Memory, 150.5mm Width
- MPN: HMISTM6BOX
- PPN: SCH-HMISTM6BOX
CAD
$1324.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

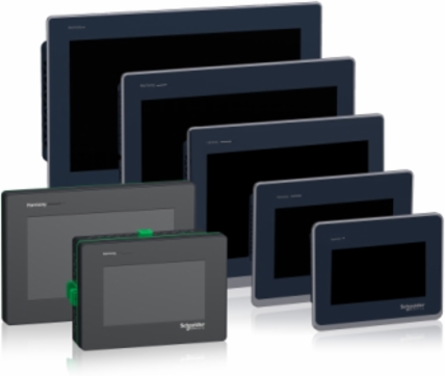

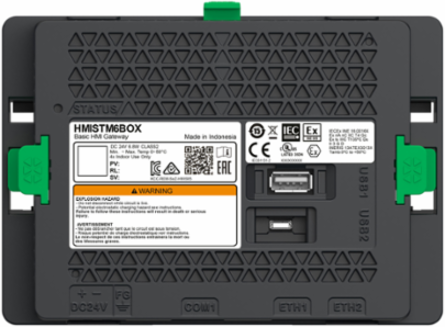

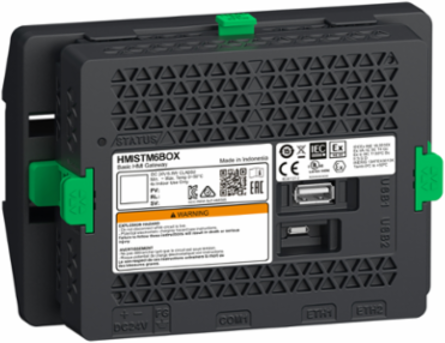

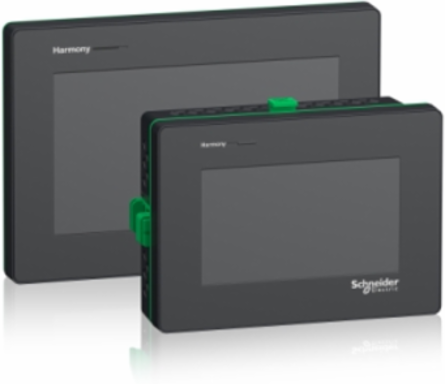

This Basic modular HMI Gateway Box belongs to the Schneider Electric Harmony ST6 range. This HMISTM6 Modular BOX is a rear module which runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It has a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. With Web viewer feature of EcoStruxure Operator Terminal Expert, the Gateway Modular Box becomes a Faceless HMI. This HMISTM6BOX supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. The HMIST6 rear module when mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The HMISTM6 Faceless HMI can be used for applications that doesn't need an operator screen full time.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, United Kingdom, Indonesia, India |
|---|

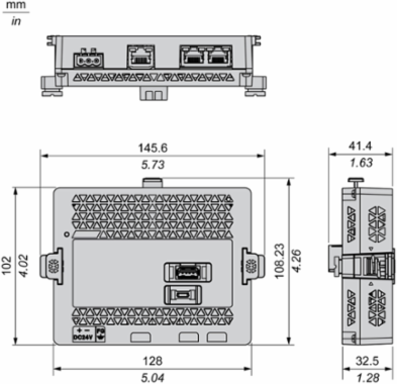

| Depth | 63.3 mm |
|---|
Complementary Attributes

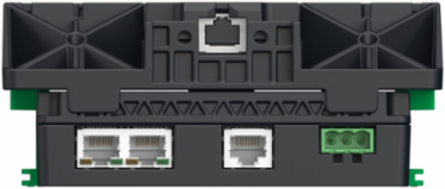

| Integrated Connection Type | 2 Ethernet TCP/IP - RJ45COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 2400...115200 bps)USB 2.0 port - micro B USB, display port - RJ451 USB 2.0 port - USB type A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, DNV, ABS, RINA, BV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1257130487 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 91 kg CO2 eq., 90.8024052916 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 1 |
| Function Option | Standard |
| Data Storage Equipment | 1 GB Flash disk NAND |
| Local Signalling | LED multi-colour status |
| Operating System | linux |
| Processor Name | ARM Cortex-A8 |
| Product Or Component Type | modular HMI box |
| Realtime Clock | built-in |
| Shock Resistance | 147 m/s²IEC 61131-2 |
| Sustainable Packaging | No |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Height Nominal | 101 mm |
| [Us] Rated Supply Voltage | 24 V DCpower supply |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0588348767, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0059013109, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 188 kg CO2 eq., 187.6336538462 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2007003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2518 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electromagnetic Compatibility | electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
| Memory Description | 512 KB backup memory512 MB internal1 GB flash |
| Port Ethernet | 10BASE-T/100BASE-T |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony STM6 |
| Returnability | No |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 279 kg CO2 eq. |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2 |
| Pep Code | ENVPEP2007003EN |
| Pep Verification Date | 2020-10-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 306.6 |
| Energy Model - Installation [A5] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Width Nominal | 150.5 mm |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 675.0 g |
| Take-back | No |
| Customs Code | 8471601050 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2007003EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2007003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 278.6265083741 |
| Circularity Profile | ENVEOLI2007003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 2000 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2020-10-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | modular HMI box |
|---|
| Range Of Product | Harmony STM6 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
