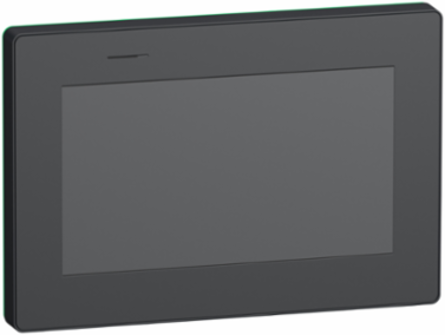

Schneider Electric HMISTM6400FW Harmony ST6 Touch Panel Display 7 Inch, 800x480 Resolution, 24 VDC
- MPN: HMISTM6400FW
- PPN: SCH-HMISTM6400FW
CAD
$2659.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Basic Modular HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI has a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is a modular HMI with 22mm pushbutton mounting system and is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only),Type 12 and Type 13 (on the front panel when properly installed in an enclosure).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth57.7 mm
Physical Attributes
- Display Size
- 7 inch
Display Color16 million colours
Complementary Attributes
- Integrated Connection Type
- 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps), 1 USB 2.0 type A, 1 USB 2.0 type micro B, 2 Ethernet - female RJ45 - 10/100BASE-T
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
- Fixing Mode
- Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201, Ø 22 mm hole IEC 61131-2, Ø 22 mm hole IEC 61000-6-2
- Product Brand
- Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0632216877, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0063413209
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 156 kg CO2 eq., 156.0039807692
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2007003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 800 x 480 pixels WVGA
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Front Material
- plastic
- Inrush Current
- 30 A
- Number Of Pages
- 200 application pages
- Processor Name
- ARM Cortex-A8
- Product Or Component Type
- touch panel screen
- Returnability
- No
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2007003EN
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 254.916
- Energy Model - Installation [A5]
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US

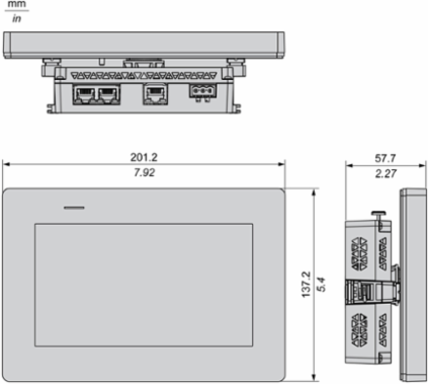

- Width Nominal
- 201.2 mm
- Cut-out Dimensions
- Ø 22.5 mm
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Downloadable ProtocolsModbus, Uni-TE, third party protocols
Local Signallingstatus LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
Certificate AgencyCE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, ABS, RINA, DNV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1350863901, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]98 kg CO2 eq., 97.5727600722
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier1
Function OptionStandard
Brightness16 levels
Display Typecolour TFT LCD
Enclosure MaterialPC
Immunity To Microbreaks2 ms
Memory Description1 GB device memory128 MB user data memory512 KB backup memory
Power Consumption In W10.4 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony ST6
Shock Resistance147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Sustainable PackagingNo
Touch Panelsingle touch analogue resistive
Display Color16 million colours
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US
Height Nominal137.2 mm
[Us] Rated Supply Voltage24 V DC +/- 20 %)
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)989 g
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 253.7813902401
- Circularity Profile
- ENVEOLI2007003EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP2007003EN
Halogen Content PerformanceProduct contains halogen above thresholds
Nema Degree Of ProtectionNEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2007003EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductHarmony ST6
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
