Schneider Electric HMIST6200 Harmony ST6 4 Inch Touch Panel Screen, 1COM, 1 Ethernet, 24V DC

MPN: HMIST6200
PPN: SCH-HMIST6200
UNSPSC: 43211506

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1634.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

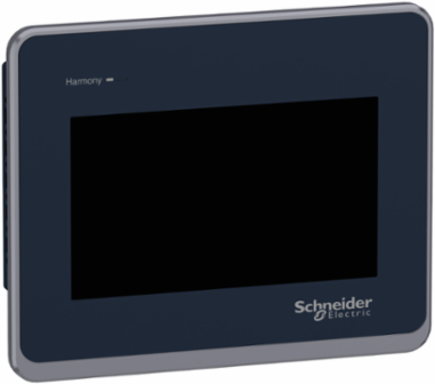

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Documentation & Downloads

Specifications

Key Specifications

Width	134.5 mm
Weight	0.4 kg
Product Or Component Type	touch panel screen

Height	108.5 mm
Range Of Product	Harmony ST6
Processor Name	ARM Cortex-A8

Complementary

Product Brand	Schneider Electric Modicon \|\| Mitsubishi Melsec \|\| Omron Sysmac \|\| Rockwell Automation Allen-Bradley \|\| Siemens Simatic
Number Of Pages	200 application pages
Height	108.5 mm
Inrush Current	30 A
Cut-Out Dimensions	118.5 x 92.5 mm panel cut dimension
Display Resolution	480 x 272 pixels
Processor Frequency	800 MHz
Fixing Mode	by 2 screws 1.6...5 mm thick panel UL 61010-2-201 \|\| by 2 screws IEC 61131-2 \|\| by 2 screws IEC 61000-6-2
Touch Panel	single touch analogue resistive
Integrated Connection Type	1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 2400...115200 bps)bottom \|\| COM1 serial link 2400...187500 bps)back \|\| 1 USB 2.0 type Aback \|\| 1 USB 2.0 type micro Bbottom \|\| 1 Ethernet - female RJ45 - RS485
Downloadable Protocols	Modbus \|\| Uni-TE \|\| third party protocols
Display Colour	16 million colours
Width	134.5 mm
Front Material	aluminium
Depth	43 mm
Memory Description	512 MB device memory \|\| 128 MB user data memory \|\| 512 KB backup memory

[Us] Rated Supply Voltage	24 V DC +/- 20 %)
Brightness	16 levels
Software Package	EcoStruxure Operator Terminal Expert
Power Consumption In W	6.9 W
Supply	external supply
Marking	CE
Net Weight	0.4 kg
Backlight Lifespan	50000 hours white
Local Signalling	status LED green, steady offline \|\| status LED green, steady operating \|\| status LED green, flashing operating \|\| status LED green, faded stand-by \|\| status LED orange, flashing software starting up \|\| status LED red, steady power supply (ON) \|\| status LED red, flashing operating \|\| status LED red, off power supply (OFF)
Display Size	4 inch
Enclosure Material	PC
Port Ethernet	10/100BASE
Display Type	colour TFT LCD
Realtime Clock	built-in 0...50 °C \|\| built-in 10...90 % RH
Character Font	ASCII \|\| ASCII (European characters) \|\| Chinese (simplified Chinese) \|\| Japanese (ANK, Kanji) \|\| Katakana \|\| Korean \|\| Taiwanese (traditional Chinese)

Environment

Product Certifications	CSA \|\| CE \|\| UKCA
Standards	IEC 61000-6-4 \|\| IEC 61000-6-2 \|\| IEC 61131-2 \|\| UL 61010-2-201 \|\| CSA C22.2 No 61010-2-201
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 \|\| electrical fast transient/burst immunity test - test level: 1 kV (signal ports) \|\| electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 \|\| electrostatic discharge immunity test - test level: 8 kV (air discharge)
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 \|\| 9.8 m/s² 9-150 Hz)
Directives	2014/35/EU - low voltage directive \|\| 2014/30/EU - electromagnetic compatibility
Nema Degree Of Protection	NEMA 4 front panel (indoor use) \|\| NEMA 13 front panel (in enclosure)
Operating Altitude	6561.68 ft (2000 m)

Ambient Air Temperature For Operation	0-50 °C
Immunity To Microbreaks	2 ms
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Ip Degree Of Protection	IP20 IEC 61131-2 rear panel) \|\| IP65 IEC 61131-2 front panel)
Ambient Air Temperature For Storage	-20-60 °C
Relative Humidity	10-90 % non-condensing

Offer Sustainability

Rohs Exemption Information	Yes
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure	ENVPEP1810005EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile	ENVEOLI1810005_V2
