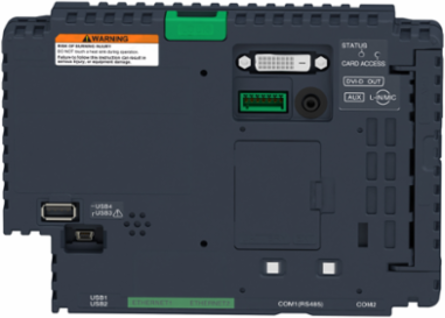

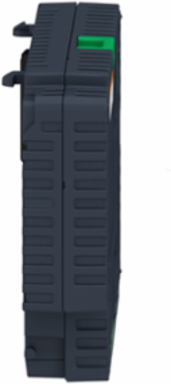

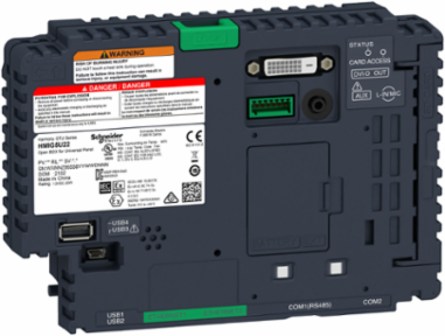

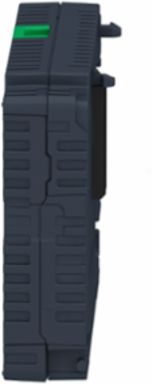

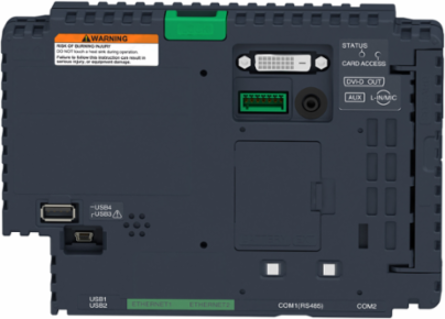

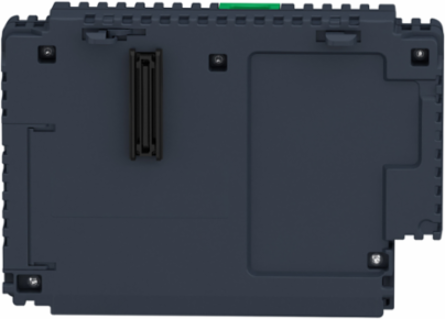

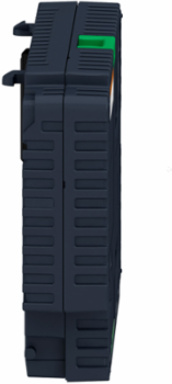

Harmony GTU Open Box HMI Panel, 7 Inch, Intel X86 1.33GHz, 4GB RAM
Harmony GTU Open Box HMI Panel, 7 Inch, Intel X86 1.33GHz, 4GB RAM
Harmony GTU Open Box HMI Panel, 7 Inch, Intel X86 1.33GHz, 4GB RAM
Harmony GTU Open Box HMI Panel, 7 Inch, Intel X86 1.33GHz, 4GB RAM
Schneider Electric

Schneider Electric HMIG5U22 Harmony GTU Open Box HMI Panel, 7 Inch, Intel X86 1.33GHz, 4GB RAM

  • MPN: HMIG5U22
  • PPN: SCH-HMIG5U22
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2349.14

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, "Smart Portal", is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, Mexico, United States
    Depth45 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus, Modbus TCP/IP, Uni-Telway

    Complementary Attributes

    Integrated Connection Type
    Ethernet TCP/IP 2 RJ45, COM1 serial link RJ45 RS485 2400...115200 bps, COM2 serial link SUB-D 9 RS232C/RS422/RS485 2400...115200 bps, auxiliary port terminal block, USB 2.0 port mini B USB, DVI-D video port DVI-D, microphone mini-jack, USB 2.0 port 3 USB type A

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Local Signalling
    , multi-colour LEDstatus, , multi-colour LEDstatus, , multi-colour LEDstatus, multi-colour LEDstatus, , multi-colour LEDstatus, , multi-colour LEDstatus
    Number Of Slots
    1 slot(s) for SD card, 2 slot(s) for Cfast card
    Certificate Agency
    CE, cULus, ATEX, IEC-Ex, RCM, DNV-GL, KC, cUL, EAC, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.7 kg CO2 eq., 0.68851
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    281 kg CO2 eq., 281
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Manufacturing Carbon Footprint
    281
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1403023EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2514
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Data Storage Equipment
    32 GB CFast card
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Processor Name
    ARM Cortex-A9
    Product Or Component Type
    base unit
    Realtime Clock
    built-in
    Shock Resistance
    147 m/s²IEC 61131-2
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    1 293 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Harmony GTU base unit during 10 years and maximum use rate at 35W, based on below function:& 10 - Ethernet& 10 - COM port: RS232C/RS422/RS485& 10 - Auxiliary port& 10 - Expansion unit fieldbus card& 10 - USB 2.0 port 3 USB type A & 10 - USB 2.0 port mini B USB& 10 - DVI-D video port DVI-D& 10 - Microphone mini-jack& 10,in accordance with the relevant standards:& 10 - CSA C22.2 No 142& 10 - ANSI/ISA 12-12-01& 10 - UL 508& 10 - Class I division 2 CSA C22.2 No 213& 10 - IEC 61132-2
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    2190
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    131 mm
    [Us] Rated Supply Voltage
    12...24 V DC power supply
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    280.67
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    281
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    3228.3
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
    3.3007
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
    -91.368
    Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]
    1.3004
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    22.323
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    866.23
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    75.222
    Materials For Recycling (Kg) Installation [A5]
    0.18
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    66.84
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
    -14.794
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    6.7216
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.282
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    3.8503
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
    22.087
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    108.26
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    6.7216
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.282
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    3.8502
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
    21.95
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    3.3709
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -3.132
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -2.0658
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]
    -1.7162
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Memory Description512 KB NVRAM backup memory, 4 GB RAM internal
    Vibration Resistance3.5 mm constant amplitude 5-9 Hz) IEC 61131-2, 9.8 m/s² 9-150 Hz) IEC 61131-2
    Carbon Footprint Of The Distribution Phase [A4]0.31709, 0.3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.31815, 0.3 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]1 010 kg CO2 eq., 1010.4285714285712
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameOpen Box
    Port Ethernet10BASE-T/100BASE-TX/1000BASE-T
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony GTU
    ReturnabilityYes
    Software PackageVijeo Designer
    Sustainable PackagingNo
    Type Of Coolingnatural convection
    Pep CodeENVPEP1403023EN
    Pep Verification Date2024-02-02
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential, In %57
    Width Nominal188 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)1.217 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]1.6987
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-6.6199
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-6.8154
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]3.8502
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]21.95
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]3678.2
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]2.3383
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-455.41
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-11.837
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-10.549
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]1.4317
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.0313
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]2.3827
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]6.7216
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]3336.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.5442
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-96.565
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-5.1978
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]6.7216
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3221.5
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.3007
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-91.086
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.3709
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]104.89
    Water Use (M3 Eq) Manufacturing [A1-a3]61.49

    Environment Attributes Main

    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    1292.7523214285711
    Ambient Air Temperature For Storage
    -20-60 °C-20-60 °C
    Environmental Disclosure
    ENVPEP1403023EN
    Halogen Content Performance
    Product contains halogen above thresholds
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1403023EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-60 °C
    Circularity ProfileENVEOLI1403023EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude2000
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-02-02
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    base unit
    Range Of ProductHarmony GTU

    ETIM

    ETIM 8
    EC001412
    ETIM 9EC001412
