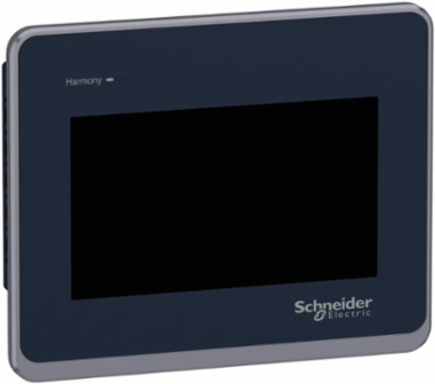

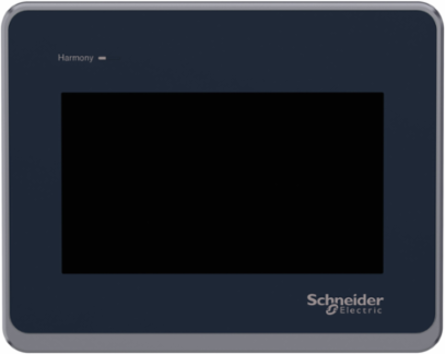

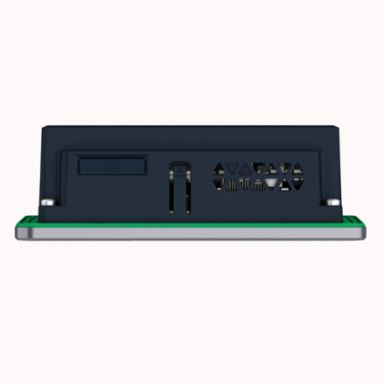

Schneider Electric HMISTW6200 Harmony ST6 Touch Panel HMI 4 Inch Display, 24V DC, ARM Cortex-A8
- MPN: HMISTW6200
- PPN: SCH-HMISTW6200
CAD
$1473.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Basic Web HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inch wide with 16 million colors and 480 x 272 pixel resolution. It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6 supports 1x Ethernet port, 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, Singapore
Depth43 mm
Physical Attributes
- Display Size
- 4 inch
Display Color16 million colours
Complementary Attributes
- Integrated Connection Type

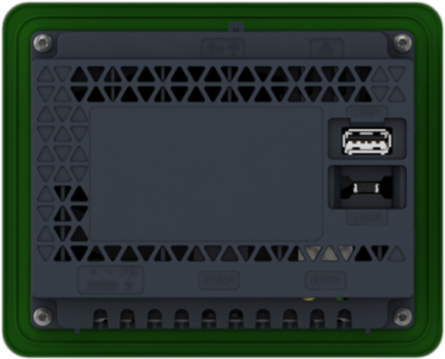

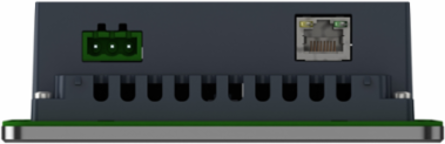

- 1 USB 2.0 type Aback, 1 Ethernet - female RJ45bottom
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Character Font
- ASCII, ASCII (European characters), Katakana
- Local Signalling
- status LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
- Realtime Clock
- built-in 0...50 °C, built-in 10...90 % RH
- Certificate Agency
- CSA, CE, UKCA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.67305, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 22 kg CO2 eq., 21.6625
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 21.6625
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1810005EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2518
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Brightness
- 16 levels
- Display Type
- colour TFT LCD
- Enclosure Material
- PC
- Immunity To Microbreaks
- 2 ms
- Marking
- CE
- Power Consumption In W
- 6.9 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony ST6
- Shock Resistance
- 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
- Supply
- external supply
- Total Lifecycle Carbon Footprint
- 517 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1810005EN
- Pep Verification Date
- 2024-09-19
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 15
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 29

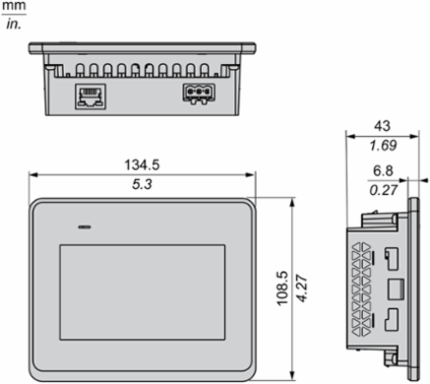

- Width Nominal
- 134.5 mm
- Cut-out Dimensions
- 118.5 x 92.5 mm panel cut dimension
- F-gas Usage Performance
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 21.6625
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 294.295
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -47.6635
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 1.6456
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -64.785
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -41.5525
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]
- -1.2157
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 0.5629
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 7.003
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 1.9507
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -48.956
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 7.003
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 287.295
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -46.914
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 7.5825
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Modeby 2 screws 1.6...5 mm thick panel UL 61010-2-201, by 2 screws IEC 61131-2, by 2 screws IEC 61000-6-2
Memory Description512 MB device memory, 512 MB user data memory128 kB backup memory
Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
Carbon Footprint Of The Distribution Phase [A4]0.08166, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.17605
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]495 kg CO2 eq., 494.6533333333334
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label4
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Display Resolution480 x 272 pixels
Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
Front Materialaluminium
Inrush Current30 A
Port Ethernet10/100BASE
Processor NameARM Cortex-A8
Product Or Component Typetouch panel screen
ReturnabilityYes
Software Versionv5.9.4
Sustainable PackagingNo
Touch Panelsingle touch analogue resistive
Display Color16 million colours
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide a HMI during 15 years and a 100% rate at 9W, based on below function:& 10- 7" Touchscreen panel.& 10- I/O connectors(USB and Ethernet) .& 10- IP20 (rear panel) & IP65(front panel) conforming to IEC 61131-2
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh906.66
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal108.5 mm
[Us] Rated Supply Voltage24 V DC +/- 20 %)
F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)440.000 g
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]21.6105
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-2.3924
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]18.1495
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]328.24
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]61.785
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]37.288
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]10.692
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]8.8095
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle7.003
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]303.75
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]18.1545
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]9.452
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]7.003
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]18.1495
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.7107
Water Use (M3 Eq) Manufacturing [A1-a3]7.6445
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 517.2465933333334
- Circularity Profile
- ENVEOLI1810005EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2024-09-19
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Operation0-50 °C
Environmental DisclosureENVPEP1810005EN
Halogen Content PerformanceProduct contains halogen above thresholds
Nema Degree Of ProtectionNEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1810005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- touch panel screen
Range Of ProductHarmony ST6
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
