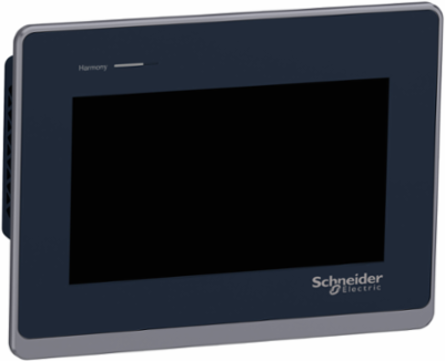

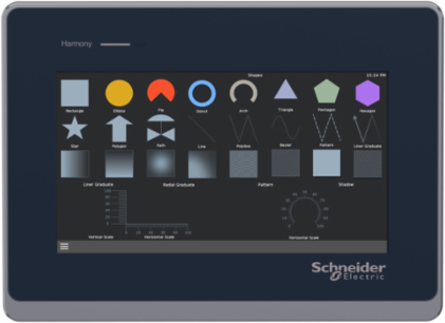

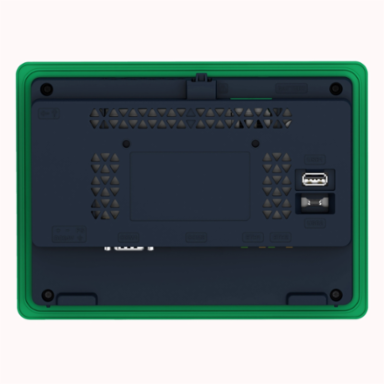

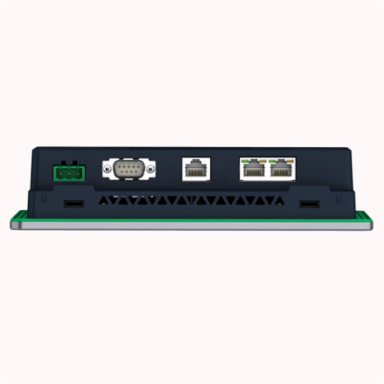

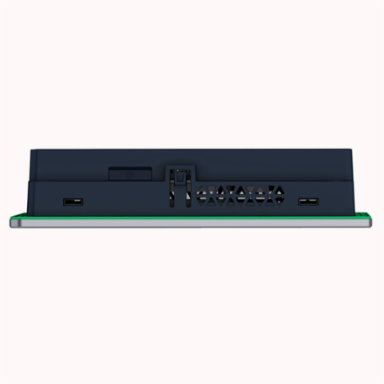

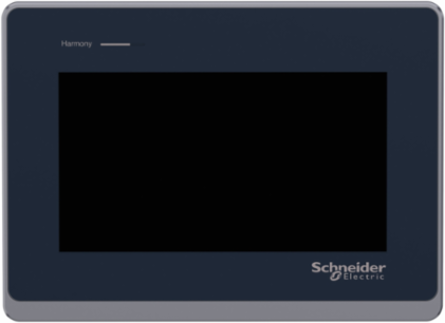

Schneider Electric HMIST6400 Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet

  • MPN: HMIST6400
  • PPN: SCH-HMIST6400
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2418.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

    Features

    • Featuring a 16-million color TFT LCD screen with 800 x 480 WVGA resolution, this Harmony ST6 HMI provides crisp, high-contrast visualization of your industrial processes. The improved pixel density allows operators to read detailed schematics and critical alarm text at a glance, reducing human error and improving reaction times in high-pressure manufacturing environments.
    • Designed with a durable, high-precision resistive analog touchscreen, the HMIST6400 ensures seamless interaction even in harsh conditions where technicians must wear thick protective gloves. Unlike capacitive screens found on smartphones, this industrial interface responds reliably to pressure, preventing "ghost touches" caused by dust, moisture, or chemical splashes common in factory settings.
    • Equipped with two 10/100 Base-T Ethernet ports and a versatile RS-485/232 serial interface, this HMI acts as a powerful communication hub for Schneider Electric Modicon PLCs and third-party hardware. The dual-port design allows you to isolate your machine-level network from the broader factory LAN, enhancing cybersecurity and ensuring stable, high-speed data exchange for real-time monitoring.
    • Optimized for the latest EcoStruxure configuration software, this terminal supports modern gesture navigation and high-quality vector graphics (SVG) for a contemporary "smartphone-like" user experience. The intuitive programming environment significantly slashes engineering time for system integrators, allowing for rapid deployment of sophisticated dashboards and data logging features.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, Singapore, United States
    Depth45 mm

    Physical Attributes

    Display Size7 inch
    Display Color16 million colours

    Complementary Attributes

    Integrated Connection Type1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B2 Ethernet

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Character FontASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
    Fixing Modeby 4 screws 1.6...5 mm thick panel UL 61010-2-201, by 4 screws IEC 61131-2, by 4 screws IEC 61000-6-2
    Product BrandSchneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
    Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
    Carbon Footprint Of The Distribution Phase [A4]0.16332, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.4 kg CO2 eq., 0.3521
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]645 kg CO2 eq., 645.2
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Manufacturing Carbon Footprint43.325
    Use Carbon Footprint645.2
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Brightness16 levels
    Display Typecolour TFT LCD
    Enclosure MaterialPC
    Immunity To Microbreaks5 ms
    MarkingCE
    Number Of Pages200 application pages
    Power Consumption In W9 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony ST6
    Shock Resistance147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
    Supplyexternal supply
    Total Lifecycle Carbon Footprint690 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Display Color16 million colours
    Pep CodeENVPEP1810005EN
    Pep Verification Date2024-09-19
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y15
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential In %29

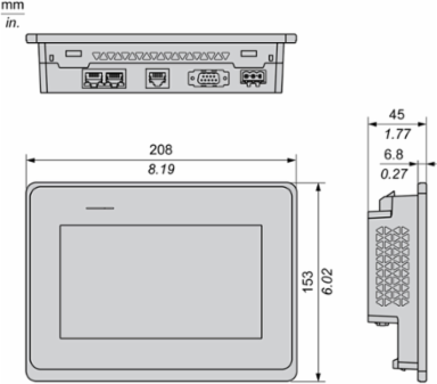

    Width Nominal208 mm
    Cut-out Dimensions190 x 135 mm panel cut dimension
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]43.221
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]1.3459
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]43.325
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]645.2
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-4.7848
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]2.2735
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]11968
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-95.327
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]3.2912
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]123.57
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]74.576
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-83.105
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]21.384
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-2.4314
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]1.1258
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-9.1915
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]5.3765
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]14.006
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle14883.9869
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]2.2765
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]14234
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-97.912
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2265.5
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle12.5067
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.4993
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]2.2735
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]11968
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-93.828
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.7389
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]15.165
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]0.8367
    Water Use (M3 Eq) Operational Energy Use [B6]23.843
    Customs Code8537109170
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsModbus, Uni-TE, third party protocols
    Local Signallingstatus LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
    Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
    Certificate AgencyCSA, CE, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.3461, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]43 kg CO2 eq., 43.325
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Service Catalog ItemFinished good
    Installation Carbon Footprint0.3521
    End Of Life Carbon Footprint1.3461
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1810005EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1920
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution800 x 480 pixels WVGA
    Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
    Front Materialaluminium
    Inrush Current30 A
    Memory Description1 GB device memory128 MB user data memory512 KB backup memory
    Port Ethernet10/100BASE
    Processor NameARM Cortex-A8
    Product Or Component Typetouch panel screen
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingNo
    Touch Panelsingle touch analogue resistive
    With Schneider Logoyes
    X With Schneider Logoyes
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a HMI during 15 years and a 100% rate at 9W, based on below function:& 10- 7" Touchscreen panel.& 10- I/O connectors(USB and Ethernet) .& 10- IP20 (rear panel) & IP65(front panel) conforming to IEC 61131-2
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh1182.6
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
    Height Nominal153 mm
    [Us] Rated Supply Voltage24 V DC +/- 20 %)
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)1.014 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]3.8437
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]644.82
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-4.7331
    Climate Change - Total ( Kg Co2 Eq.) Installation [A5]0.3521
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]1.3461
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]588.59
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]3.6069
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]36.299
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]656.48
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]8575
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-129.57
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]1.1147
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]7.2707
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]318.74
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]17.619
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]89.467
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]1.4433
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle14.006
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-1.4993
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]607.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]3.9014
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]36.309
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]18.904
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-2.5847
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]14.006
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]574.59
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]3.6069
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]36.299
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.7389
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.4214
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2265.5
    Water Use (M3 Eq) Manufacturing [A1-a3]15.289
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-1.9049

    Environment Attributes Main

    Ambient Air Temperature For Storage-20-60 °C, -20-60 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint690.38652
    Circularity ProfileENVEOLI1810005EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-09-19
    Psr VersionPSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP1810005EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1810005EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typetouch panel screen
    Range Of ProductHarmony ST6

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Harmony ST6 7 Inch Touch Panel HMI, ARM Cortex-A8, 800 x 480 Pixels, 2 Ethernet
    Loading video…

    Similar Products

    Loading carousel layout...

    CAD$2418.97/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
