Harmony STO Touch Panel Screen, 4.3 Inch TFT LCD, Ethernet, 26MB Memory
Harmony STO Touch Panel Screen, 4.3 Inch TFT LCD, Ethernet, 26MB Memory
Schneider Electric

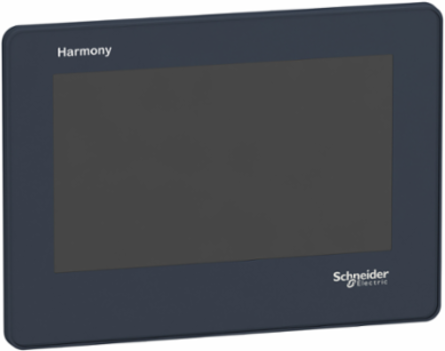

Schneider Electric HMISTO735 Harmony STO Touch Panel Screen, 4.3 Inch TFT LCD, Ethernet, 26MB Memory

  • MPN: HMISTO735
  • PPN: SCH-HMISTO735
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $491.45

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

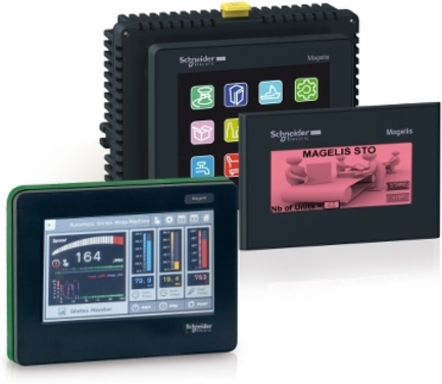

    This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United Kingdom, Mexico, Sweden, United States
    Depth38.8 mm

    Physical Attributes

    Display Size
    4.3 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    1 USB 2.0 type mini B, 1 USB 2.0 type A1 Ethernet TCP/IP - RJ45

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Character Font
    ASCII (European characters), Cyrillic, Taiwanese (traditional Chinese), Chinese (simplified Chinese), Japanese (ANK, Kanji), Korean
    Electromagnetic Compatibility
    resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz), resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
    Certificate Agency
    CE, C-tick, ATEX zone 2/22, KCC, UL, cUL, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.30795, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    27 kg CO2 eq., 26.643
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Manufacturing Carbon Footprint
    26.643
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1511015EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1920
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Brightness
    16 levels via touch panel
    Display Type
    colour TFT LCD
    Fixing Mode
    by 2 installation fasteners 1.5 to 6 mm thick panel
    Memory Description
    back up of data 512 KBapplication memory 26 MB
    Port Ethernet
    10BASE-T/100BASE-TX
    Processor Name
    ARM926EJ-S
    Product Or Component Type
    touch panel screen
    Realtime Clock
    with RTC-battery set optional
    Shock Resistance
    15 gn 11 msIEC 61131-2
    Software Package
    EcoStruxure Operator Terminal Expert
    Supply
    external source
    Total Lifecycle Carbon Footprint
    686 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1511015EN
    Pep Verification Date
    2024-09-19
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    15
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; IN
    Recyclability Potential In %
    17
    Width Nominal
    124.9 mm
    Cut-out Dimensions
    77.5 x 112.5 mm66 x 105 mm with mounting adaptor
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
    26.643
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    0.9281
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    10.604
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
    359.52
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
    34.517
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    32.458
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
    24.28
    Materials For Recycling (Kg) Manufacturing [A1-a3]
    0.0008
    Materials For Recycling (Kg) End Of Life [C1-c4]
    0.049
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]
    0.7664
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    4.7806
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.3572
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
    2.6379
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
    -13.033
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1555.416
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    4.7806
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.3572
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
    0.9281
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
    10.604
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    2.4865
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -2.3256
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    1555.416
    Water Use (M3 Eq) Manufacturing [A1-a3]
    6.8442
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable ProtocolsModbus TCP, Modbus, third party protocols
    Vibration Resistance1 gn 5-150 Hz) IEC 61131-2, 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
    Carbon Footprint Of The Distribution Phase [A4]0.066671, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.23703
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]658 kg CO2 eq., 658.4435999999998
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution480 x 272 pixels
    Enclosure MaterialPPT
    Front Materialplastic
    Number Of Pages8999
    Power Consumption In W8.1 W
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony STO & STU
    ReturnabilityYes
    Software DesignationEcoStruxure Operator Terminal Expert
    Software Versionv5.9.4
    Sustainable PackagingNo
    Touch Panelanalogue
    Display Color65536 colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a compact panel HMI with enhanced communication capabilities, during 15 years and a 100% rate at 7.5W，based on below function:& 10- 4.3" Touchscreen panel.& 10- I/O connectors(RS232 & USB2.0 A).& 10- IP65f (front panel), IP20 (rear panel).
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh1064.34
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; IN
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; IN
    Height Nominal90.4 mm
    [Us] Rated Supply Voltage12...24 V DC - 10...20 %
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)534.000 g
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]26.586
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]345.32
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]2.4534
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-12.024
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.8292
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-9.677
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-9.4554
    Materials For Recycling (Kg) Total Life Cycle0.1866
    Materials For Recycling (Kg) Installation [A5]0.1368
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]8.9406
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.677
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.7806
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]358.04
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]10.605
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]12.718
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-1.0085
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.7806
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]340.54
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.4534
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-11.667
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.4865
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.232
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.3171
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -20-60 °C, -20-60 °C
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Silicon Free
    No
    Ambient Air Temperature For Operation
    0-50 °C
    Environmental Disclosure
    ENVPEP1511015EN
    Halogen Content Performance
    Product contains halogen above thresholds
    Nema Degree Of Protection
    NEMA 4X/13 front panel indoor use)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1511015EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint685.6982509999998
    Circularity ProfileENVEOLI1511015EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP65f front panel)IP20 rear panel)
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % without condensation
    Pep Verification Date2024-09-19
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    touch panel screen
    Range Of ProductHarmony STO & STU
