Burndy BCSC256900 Black Cold Shrink Silicone Rubber Tube, 9 Inch Length, 2000 V Insulation
- MPN: BCSC256900
- UPC: 621945668010
- PPN: BUR-50128116
- UNSPSC: 39121446
CAD
$55.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

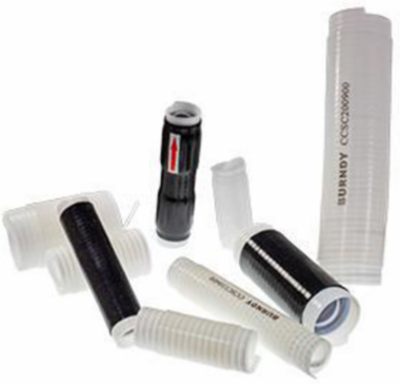

Black Cold Shrink, Specially formulated silicone rubber offering excellent insulation and moisture resistant sealing for in-line cable connector systems. The rubber sleeves are factory expanded over a removeable, plastic ripcord housing. Installs quickly and easily with no heat gun or other installation tools. Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil. Operating temperature range: -40°C to +105°C.
Features
- Length of tube is consistent before and after application
- Easy, safe installation
- Suitable for wide range of cable sizes
- UV resistance, thermal stability
- No special tools or training required
- Forms a moisture resistant seal
- Indoor and outdoor applications
- Rip and Grip Installation does not require heat gun or any installation tools
- Passes TELCORDIA GR-347-CORE Abrasion and Cut Test up to 750 kcmil
- cUL insulating cover for wire connectors tested in accordance to UL 486A/B
- Passes UL 746C Glow Wire Test
- Ripcord is recyclable
Specifications
Additional
- Voltage Rating
- 2000 V
- Material
- Silicone Rubber
- Operating Temperature Range
- -40 C to +105 C
- Abrasion and Cut Test Rating
- Up to 750 kcmil
- Country of Origin
- CN
Length9 in
ColorBlack
Jacket OD Range1.22 in to 2.01 in
ComplianceTELCORDIA GR-347-CORE, UL 486A/B, UL 746C Glow Wire
