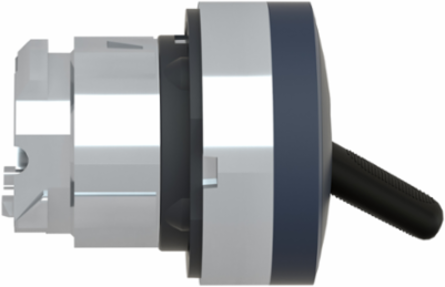

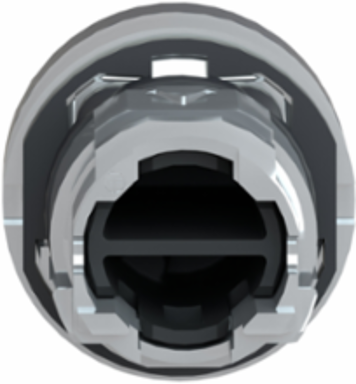

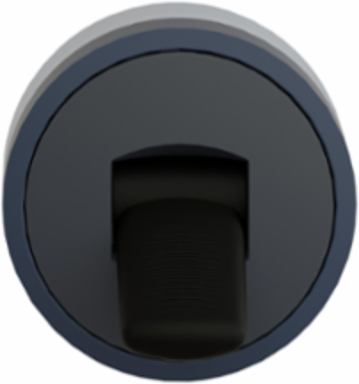

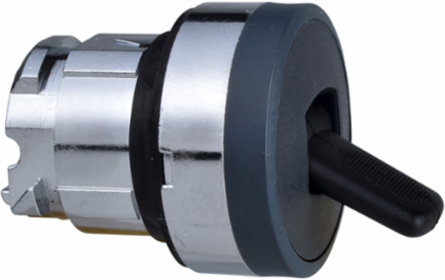

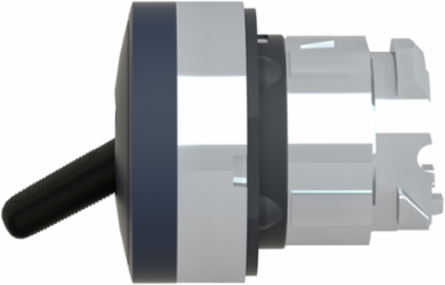

Schneider Electric ZB4BD28 Harmony XB4 Toggle Switch Head, Metal, 22mm, Black, IP69K, 2 Positions
- MPN: ZB4BD28
- PPN: SCH-ZB4BD28
CAD
$25.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, black selector switch head with toggle switch with lever has 2 positions, operates with stay-put mechanism. This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between the two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- head for selector switch
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB4
Mounting Diameter22 mm
Head Typestandard
Bezel Materialchromium plated metal
Complementary
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Operator Profile
- black toggle switch
- Mechanical Durability
- 500000 cycles
- Cad Overall Depth
- 45 mm
Electrical Composition CodeC11 3 single front mounting || C12 6 single front mounting || C15 1 single front mounting || C13 6 single and double front mounting
Net Weight0.026 kg
Device Presentationbasic element
Overvoltage Categoryclass I IEC 60536
Operator Position Information2 positions 90°
Cad Overall Width29 mm
Environment
- Product Certifications
- CSA || UL listed || BV || GL || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP69 IEC 60529 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsUL 508 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
