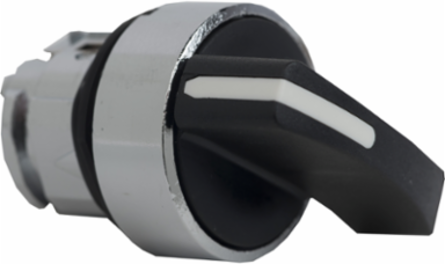

Schneider Electric ZB4BJ2 Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions

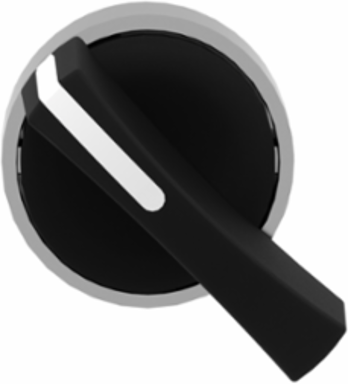

Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions

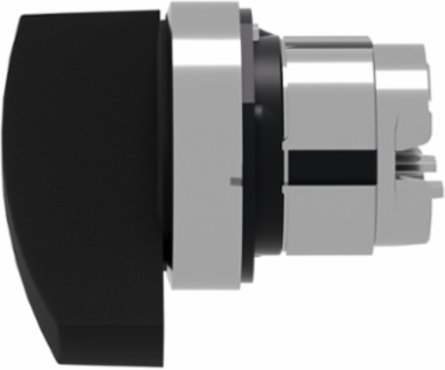

Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions

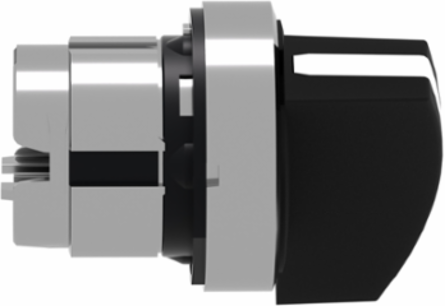

Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions

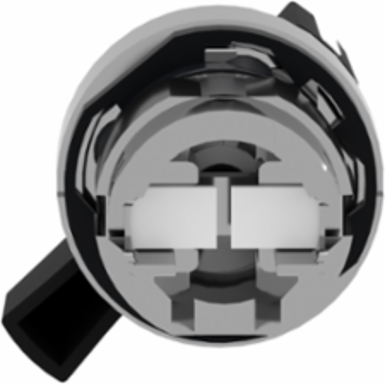

Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions
Harmony XB4 Metal Selector Switch Head, 22mm, Long Handle, 2 Positions
  • MPN: ZB4BJ2
  • PPN: SCH-ZB4BJ2

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$25.49/ EA

    Description

    This Harmony XB4, black head with long handle has 2 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

    Specifications

    Operator Positions
    2 positions, 90°
    Vibration Resistance
    5 gn, 2-500 Hz IEC 60068-2-6
    Temperature Range
    -40 to 70 °C (-40 to 158 °F)
    Mounting Diameter
    22 mm (0.87 in)
    Weight
    0.04 kg (0.09 lb)
    Shape
    Round
    Operator Type
    Stay put
    Standards Compliance
    UL 508, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1, JIS C8201-5-1
    Protection Rating
    IP67, IP69, IP69K, NEMA 13, NEMA 4X, IK06 IEC 50102
    Country of Origin
    France
    Compliance
    RoHS (out of EU legal scope), REACH SVHC free, Mercury free, Toxic heavy metal free
    Mechanical Durability1,000,000 cycles
    Shock Resistance30 gn (18 ms), 50 gn (11 ms) IEC 60068-2-27
    Pressure Resistance7,000,000 Pa at 55 °C, 0.1 m
    Dimensions29 mm (W) x 38 mm (H) x 44 mm (D)
    MaterialChromium plated metal bezel
    Operator ProfileBlack long handle
    Overvoltage CategoryClass I IEC 60536
    Product CertificationsLROS, DNV, BV, CSA, GL, UL listed
    Protective TreatmentTH coating
    Warranty18 months
