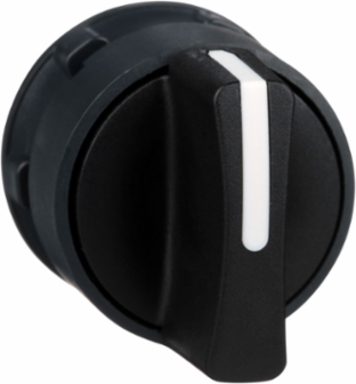

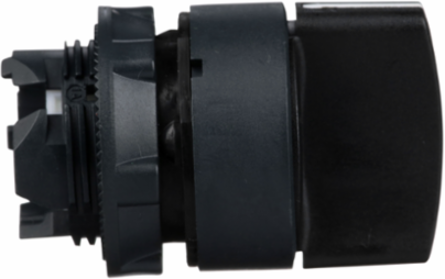

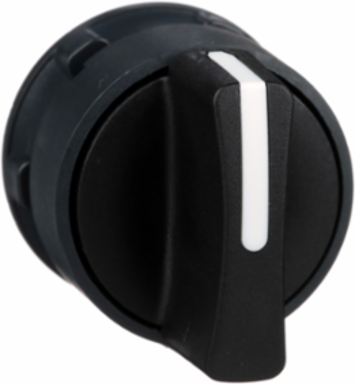

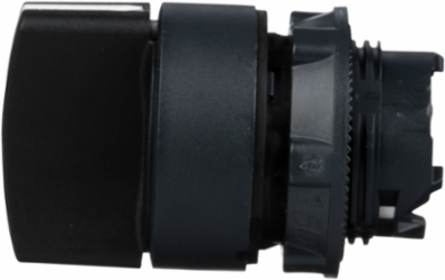

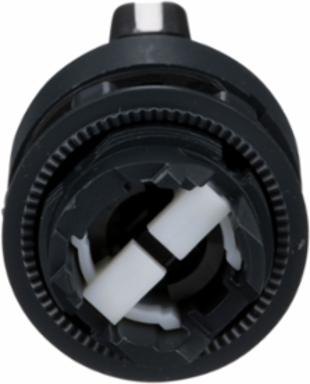

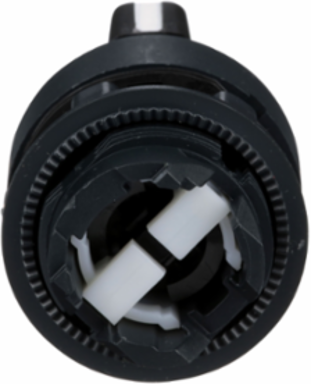

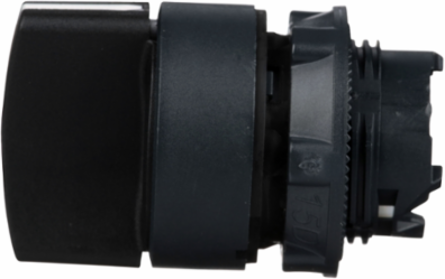

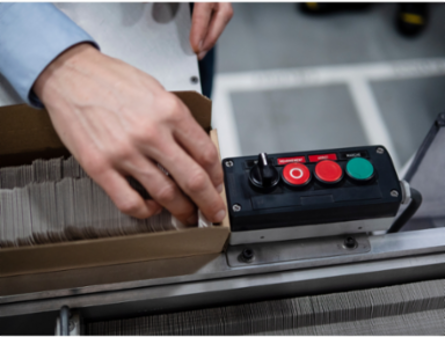

Schneider Electric ZB5AD2 Selector Switch Head, Harmony XB5, 22mm, Stay Put, IP69K
- MPN: ZB5AD2
- PPN: SCH-ZB5AD2
CAD
$25.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The Schneider Electric Harmony ZB5AD2 is a 2-position maintained selector switch actuator. This means when you turn the knob from the left to the right position, it "stays" there until you manually turn it back. It is the industry standard for "Auto/Manual" or "Off/On" selection in Canadian control panels and machinery.
- Part of the Harmony ZB5 (plastic) range, this actuator is highly resistant to chemical corrosion and electrical interference. With IP66, IP67, IP69, and IP69K ratings, it is specifically designed to withstand high-pressure wash-downs and extreme temperatures, making it ideal for Canadian food and beverage processing or outdoor marine applications.
- The actuator features a standard black stay-put handle with a high-contrast white position indicator. The handle s shape is designed for a positive grip, ensuring that operators in rugged industrial environments can clearly feel the mechanical "click" of the switch even when wearing heavy work gloves.
- This unit is designed for a standard 22mm mounting hole, making it universally compatible with most industrial control stations. Its modular design allows it to be combined with a mounting collar and various ZBE contact blocks, giving you the flexibility to customize the specific electrical logic (NO/NC) needed for your control circuit.
- The ZB5 series features a double-insulated plastic bezel. This is a major advantage in applications where grounding the operator is difficult or where the device is exposed to corrosive cleaning agents that might pit or degrade chrome-plated metal. It provides a lightweight yet incredibly durable solution for high-frequency use.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes

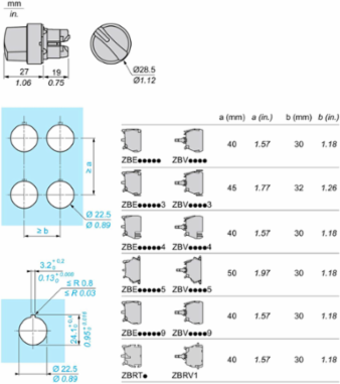

- Cad Overall Depth
- 46 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Range Of Product
- Harmony XALF, Harmony XB5
- Operator Profile 1 Cap Operator Or Lens Color
- black
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0022230087, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0057890891, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Compatibility Code
- ZB5
- Group Of Product
- non illuminated
- Main Group
- selector switch
- Mounting Diameter
- 22 mm
- Operator Profile
- black standard handle
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Operator
- stay put
- Type Of Operator 3 Type Of Operator
- stay put
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential In %
- 23
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC3 6 single front mountingC4 6 single and double front mountingC5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Operator Pos Information2 positions 90°
Certificate AgencyDNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0298632279
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.1157624926
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content60 %
Bezel Materialdark grey plastic
Device Short NameZB5
Head Typestandard
Mechanical Durability1000000 cycles
Operator Position Information2 positions 90°
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for selector switch
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station NameXALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep Code"ENVPEP2308008EN"
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)24.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529, IP69 IEC 60529, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.1536378183
- Environmental Disclosure
- "ENVPEP2308008EN"
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2308008EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XALF, Harmony XB5
Product Or Component Typehead for selector switch
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
