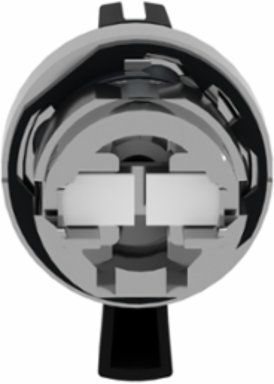

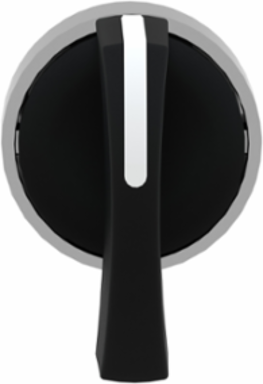

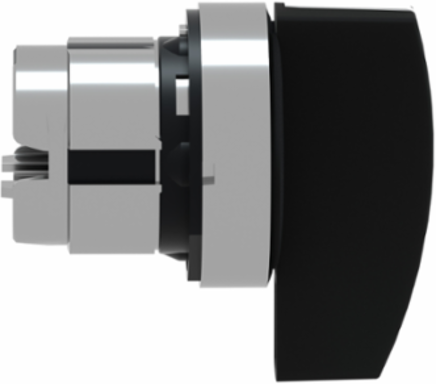

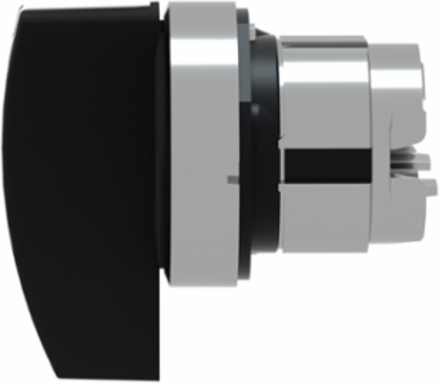

Schneider Electric ZB4BJ5 Harmony XB4 Selector Switch Head, 22mm, 3 Positions, Metal Bezel
Schneider Electric ZB4BJ5 Harmony XB4 Selector Switch Head, 22mm, 3 Positions, Metal Bezel
- MPN: ZB4BJ5
- PPN: SCH-ZB4BJ5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$31.29/ EA
Description

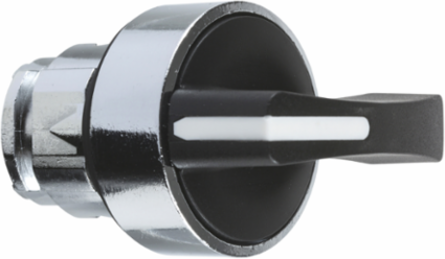

This Harmony XB4, black head with long handle has 3 positions, operates with spring return to center mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- UL listed || DNV || LROS (Lloyds register of shipping) || BV || GL || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP67 IEC 60529 || IP69 || IP69K
- Overvoltage Category
- class I IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsJIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Cad Overall Height
- 38 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 29 mm
Net Weight0.04 kg
Device Presentationbasic element
Mechanical Durability1000000 cycles
Cad Overall Depth44 mm
Specifications
- Operator Additional Information
- non padlockable
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for selector switch
- Head Type
- standard
- Bezel Material
- chromium plated metal
- Operator Position Information
- 3 positions +/- 45°
Range Of ProductHarmony XB4
Type Of Operatorto centre spring return
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profileblack long handle
Device Short NameZB4
