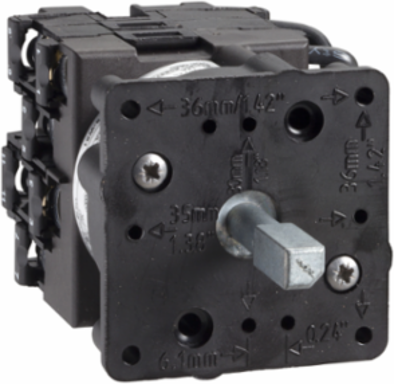

Schneider Electric K2E003WL Harmony K Reversing Switch Body, 3 Poles, 20A, Multifixing, Plastic

MPN: K2E003WL
PPN: SCH-K2E003WL

$77.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Harmony K reversing switch body from Schneider Electric is engineered for versatility and reliable operation in a range of industrial applications. With three poles and a current rating of 20A, this switch allows for efficient control in environments where reversing functions are essential. Its multifixing design facilitates easy installation across various mounting configurations, while the durable plastic construction ensures resilience against wear and tear. This makes it a practical choice for professionals seeking dependable switching solutions in demanding settings.

Documentation & Downloads

Specifications

Key Specifications

Switching Positions	right: 0° - 45° \|\| left: 0° - 315°
Bezel Material	plastic
Product Mounting	front mounting
Sub-Assembly Composition	contact blocks + fixing plate
[Ith] Conventional Free Air Thermal Current	20 A
Component Name	K2

Range Of Product	Harmony K
Fixing Mode	multifixing
Poles Description	3P
Product Or Component Type	cam switch body
Cam Switch Function	reversing switch
Off Position	with Off position

Complementary

Electrical Connection	captive screw clamp terminals flexible 2 x 1.5 mm² \|\| captive screw clamp terminals solid 1 x 2.5 mm²
Maximum Operating Rate	2.5 cyc/mn AC-21 \|\| 2.5 cyc/mn AC-23 \|\| 2.5 cyc/mn AC-3 \|\| 8.333 cyc/mn AC-15
Short-Circuit Protection	20 A cartridge fuse gG
Positive Opening	with
Mechanical Durability	1000000 cycles
Net Weight	0.146 kg
Rated Operational Power In W	1300 W AC-3, 230 V 1 phase IEC 947-3 \|\| 5500 W AC-23A, 400 V 3 phases IEC 947-3 \|\| 5500 W AC-23A, 500 V 3 phases IEC 947-3 \|\| 5500 W AC-23A, 690 V 3 phases IEC 947-3 \|\| 8000 W AC-21, 230 V 3 phases IEC 947-3 \|\| 14000 W AC-21, 400 V 3 phases IEC 947-3 \|\| 17000 W AC-21, 500 - 660 V 3 phases IEC 947-3 \|\| 2200 W AC-3, 230 V 3 phases IEC 947-3 \|\| 2200 W AC-3, 400 V 1 phase IEC 947-3 \|\| 4000 W AC-23A, 230 V 3 phases IEC 947-3 \|\| 4000 W AC-3, 400 V 3 phases IEC 947-3 \|\| 4000 W AC-3, 500 V 3 phases IEC 947-3 \|\| 4000 W AC-3, 690 V 3 phases IEC 947-3
Switching Angle	45 °

Electrical Durability	200000 cycles AC-23 \|\| 200000 cycles AC-3 \|\| 600000 cycles AC-15 \|\| 600000 cycles AC-21
Short-Circuit Current	10000 A
[Ui] Rated Insulation Voltage	690 V 3)IEC 60947-1
Contact Operation	slow-break
[Ithe] Conventional Enclosed Thermal Current	16 A
[Uimp] Rated Impulse Withstand Voltage	4 kV in isolating function \|\| 6 kV IEC 947-1
[Ie] Rated Operational Current Ac	2 A 500 V AC-15 IEC 947-5-1 \|\| 8.3 A 230 V AC-3 3 phases IEC 947-3 \|\| 8.9 A 500 V AC-23A 3 phases IEC 947-3 \|\| 3 A 400 V AC-15 IEC 947-5-1 \|\| 4 A 230 V AC-15 IEC 947-5-1 \|\| 8 A 400 V AC-3 3 phases IEC 947-3 \|\| 10.8 A 400 V AC-23A 3 phases IEC 947-3 \|\| 14.6 A 230 V AC-23A 3 phases IEC 947-3 \|\| 4.7 A 690 V AC-3 3 phases IEC 947-3 \|\| 6.4 A 690 V AC-23A 3 phases IEC 947-3 \|\| 6.5 A 500 V AC-3 3 phases IEC 947-3

Environment

Ambient Air Temperature For Operation	-25-55 °C
Electrical Shock Protection Class	class II IEC 536 \|\| class II NF C 20-030
Shock Resistance	30 gn IEC 68-2-27
Protective Treatment	TC

Ambient Air Temperature For Storage	-40-70 °C
Vibration Resistance	5 gn 10-150 Hz)IEC 68-2-6
Product Certifications	CSA 240 V 1 hp 1 phase \|\| CSA 240 V 3 hp 3 phases 2 \|\| UL 240 V 1 hp 3 phases \|\| UL 240 V 0.33 hp 1 phase 2
Standards	CENELEC EN 50013 \|\| EN 60947-3 power circuit \|\| EN 60947-5-1 control circuit \|\| IEC 60947-3 power circuit \|\| IEC 60947-5-1 control circuit

Contractual warranty

Warranty	18 months

Offer Sustainability

China Rohs Regulation	X
Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP071103EN_V1
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity Profile	N/A
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc	Yes
