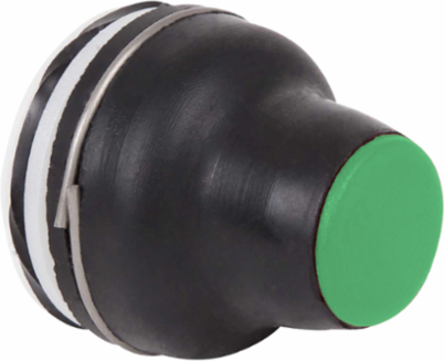

Schneider Electric XACB9113 Booted Head for Pushbutton - Green, 4 mm, -25 to +70 C, IP65

MPN: XACB9113
PPN: SCH-XACB9113

$11.62

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This booted head for pushbuttons from Schneider Electric combines durability with functionality, making it an ideal choice for various automation and control applications. Designed to operate effectively in environments ranging from -25 to +70 C, it offers robust protection with an IP65 rating, ensuring resistance against dust and water ingress. The bright green color enhances visibility, making it easy to identify during operation, while the 4 mm connection provides reliable integration into your existing systems. This component is essential for creating efficient pendant stations that can withstand the demands of industrial settings.

Features

The Schneider Electric XACB9113 is engineered for seamless mechanical compatibility with Harmony XAC-B series pendant control stations, specifically matching XENC, XEND, XENB, XESB2011, and XESD series contact blocks. This ensures a drop-in replacement that eliminates installation guesswork, minimizing machine downtime during routine maintenance of your crane or hoist controls.
Featuring a high-quality polychloroprene protective boot, this push-button head achieves an IP65 ingress protection rating to completely seal out dust, oil, and water splashes. It safeguards underlying electrical contacts from airborne contaminants, preventing premature switch failure in demanding manufacturing and material handling facilities.
Built to survive tough workplace conditions, this rugged operating head boasts an IK08 impact rating and a high shock resistance of up to 100 gn. It absorbs accidental impacts from tools or moving machinery and resists constant equipment vibrations, ensuring reliable contact actuation without degrading or cracking.
This component maintains its flexible 4 mm operating travel and structural integrity across a wide operating temperature range of -13 F to 158 F (-25 C to 70 C). Whether deployed in sub-zero cold storage units or high-heat industrial foundries, the protective boot won't harden or become brittle, guaranteeing consistent tactile feedback for operators.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	IEC 60947-5-1, CSA C22.2 No 14
Local Publishable Date	2026-03-31
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Component Name	XACB
Marking	unmarked
Operator Additional Information	booted
Product Or Component Type	head for push-button
Returnability	No
Shock Resistance	100 gn IEC 60068-2-27
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Cap/Operator Or Lens Colour	green
Package Weight(Lbs)	6.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Shock Protection Class	class II conforming to IEC 61140
Operating Travel	4 mm
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony XAC
Sale Per Indivisible Quantity	10
Sustainable Packaging	No
Pep Code	ENVPEP0709005EN
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Product Compatibility	XENC...., XEND...., XESB2011, XESD2241, XENB...., XESD2251, XESD2201
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0709005EN

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
