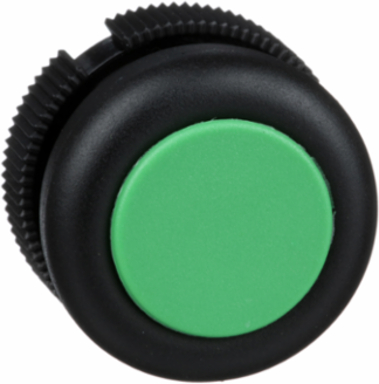

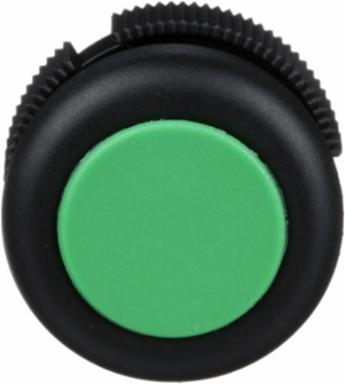

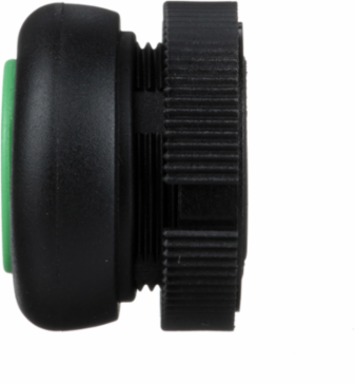

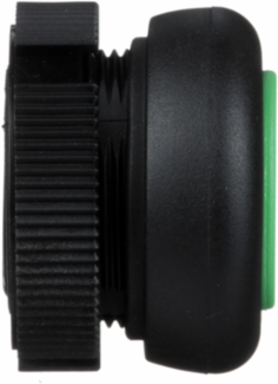

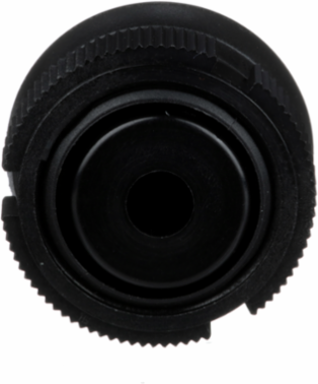

Schneider Electric XACA9413 Harmony XAC Green Booted Push Button Head, IP65, IK08
- MPN: XACA9413
- PPN: SCH-XACA9413
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- Designed with a rugged, factory-sealed protective rubber boot, this operating head completely blocks out dangerous dust, oil mist, and direct water exposure. This heavy-duty, weather-resistant barrier ensures your internal electrical switch blocks remain shielded from rapid corrosion and hazardous short circuits, extending the lifespan of your controls in harsh manufacturing environments or exposed outdoor construction sites.
- Featuring a highly responsive spring-return (momentary) action, this button immediately opens the electrical circuit the split-second the operator removes their thumb. This essential fail-safe function prevents runaway crane movements, giving your maintenance technicians and hoist operators precise "inching" control over heavy payloads while maintaining strict compliance with workplace safety protocols.
- Manufactured with a vivid, fade-resistant green finish, this flat push button acts as the universal industrial standard for "Start," "Power On," or forward directional operations. Instantly distinguishing critical machine functions minimizes costly operator errors during fast-paced shifts, ensuring smoother, safer daily operations across complex motor control centers.
- Built to perform relentlessly across a demanding operating range of -25 C to +70 C (-13 F to 158 F), this ruggedized component won't crack in sub-zero cold storage or warp near industrial furnaces. It provides facility managers with absolute peace of mind, ensuring mechanical handling systems remain fully operational regardless of severe seasonal weather drops or punishing ambient heat
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, Spain, France, Mexico, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60204-32
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0087622378
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.048031857
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Component Name
- XACA
- Mounting Location
- front of enclosure
- Overvoltage Category
- class II conforming to IEC 61140
- Product Or Component Type
- head for push-button
- Returnability
- Yes
- Shock Resistance
- 100 gn IEC 60068-2-27
- Sustainable Packaging
- No
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Czech Republic
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Recyclability Potential In %
- 32
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0020292929, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000483629, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Markingunmarked
Operator Additional Informationbooted
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XAC
Sale Per Indivisible Quantity10
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Cap/Operator Or Lens Colourgreen
Package Weight(Lbs)9.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0588717506
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- XACA..
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
