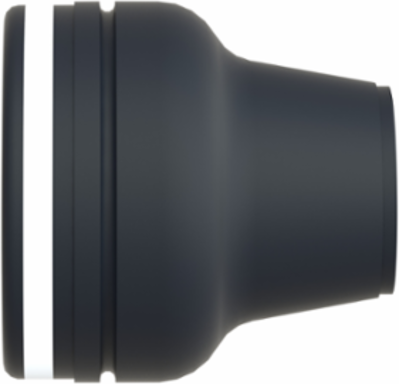

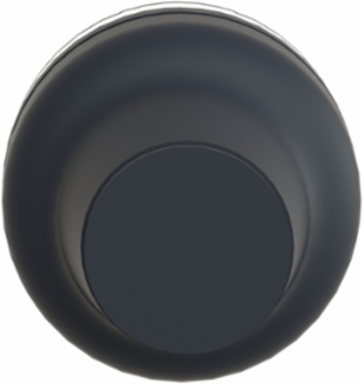

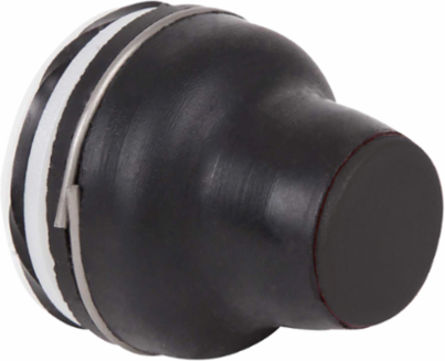

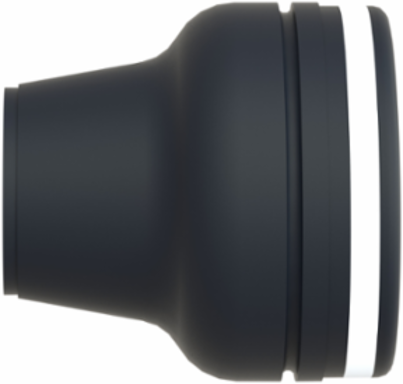

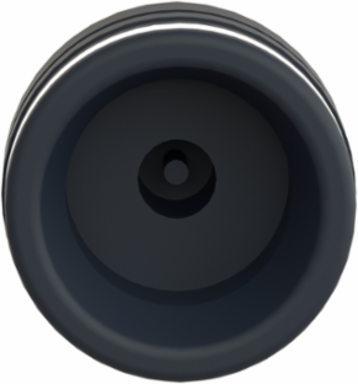

Schneider Electric XACB9112 Harmony XAC Push Button Head, 4 mm Operating Travel, IP65 Rating

MPN: XACB9112
PPN: SCH-XACB9112

$11.62

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This black booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 4mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	IEC 60947-5-1, CSA C22.2 No 14
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.013882983682983683
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0 kg CO2 eq., 0.029603729603729603
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Shock Protection Class	class II conforming to IEC 61140
Operating Travel	4 mm
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony XAC
Sale Per Indivisible Quantity	10
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Pep Code	ENVPEP0709005EN
Pep Verification Date	2024-06-17
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.0007846153846153847, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0009417249417249417, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Component Name	XACB
Marking	unmarked
Operator Additional Information	booted
Product Or Component Type	head for push-button
Returnability	Yes
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colour	black
Package Weight(Lbs)	6.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Product Compatibility	XESD2251, XESB2011, XENB...., XENC...., XESD2241, XESD2201, XEND....
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-17
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.04521305361305361
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0709005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
