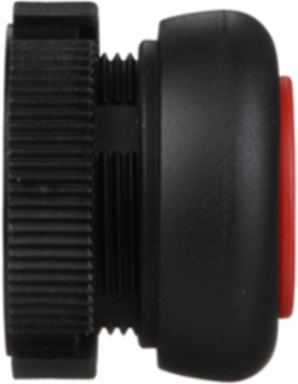

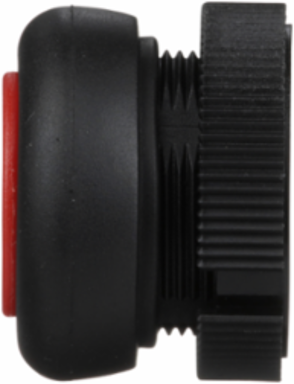

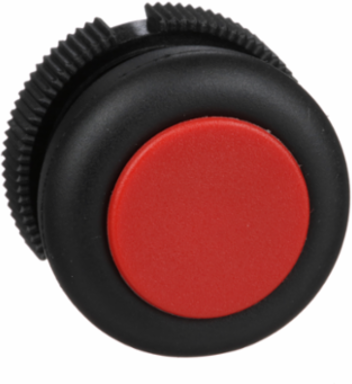

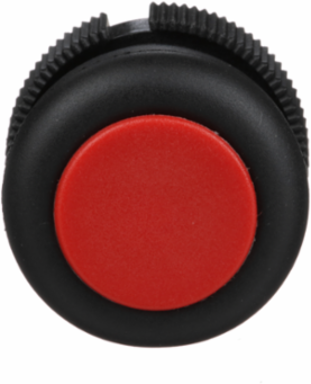

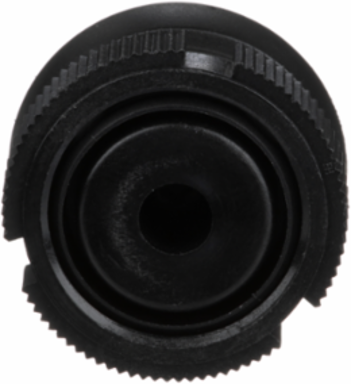

Schneider Electric XACA9414 Harmony XAC Red Booted Push Button Head, IP65, IK08, -25-70 C
- MPN: XACA9414
- PPN: SCH-XACA9414
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- Engineered with a flexible, heavy-duty protective silicone boot, this red pushbutton operator head completely seals out industrial dust, pressurized moisture, and corrosive cutting oils. This crucial IP65-rated defense eliminates premature switch failure caused by internal contamination, significantly extending the operational lifespan of your overhead crane or hoist pendant in demanding facilities.
- Featuring a highly responsive spring-return mechanism, this flat button instantly disengages the electrical signal the exact millisecond a technician removes their thumb. This momentary action is an absolute safety requirement for the precise jogging of heavy industrial loads, ensuring motorized machinery immediately stops moving if the operator accidentally drops the control pendant.
- Built to endure the severe physical abuse inherent to heavy material handling, this rugged plastic actuator boasts an impressive 100gn shock resistance and 15gn continuous vibration tolerance. Upgrading to this high-impact component prevents unexpected control failures and costly facility downtime caused by swinging pendants violently striking surrounding machinery or concrete floors.
- Fully certified to meet rigorous UL 508, CSA C22.2, and EN/IEC 60947-5-1 standards, this industrial control component ensures your motorized lifting equipment easily passes routine safety inspections. Furthermore, the highly visible, safety-critical red coloration provides immediate visual recognition for vital machine functions, helping facility managers maintain strict OSHA compliance on the floor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, Spain, France, Mexico, United States
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA C22.2 No 14, UL 508, IEC 60204-32, IEC 60947-5-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0020867222
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.0694055556
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Marking
- unmarked
- Operator Additional Information
- booted
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XAC
- Sale Per Indivisible Quantity
- 10
- Software Version
- EIME v5.9.1
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Pep Code
- ENVPEP0709005EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 9.000 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 0.0106
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0012902222, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000548972, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Component NameXACA
Mounting Locationfront of enclosure
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typehead for push-button
ReturnabilityYes
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis head is united with emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60204-1 and EN/ISO & Machinery Directive 2006/42/EC5 during 20 years
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Espagnac, France
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Recyclability Potential In %32
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Manufacturing [A1-a3]5.71
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0728373972
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- XACA..
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP0709005EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
