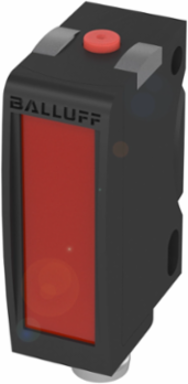

Balluff BOS02EK BOS 6K-UI-LH12-S75
- MPN: BOS02EK
- PPN: BAL-BOS02EK
CAD
$700.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BOS 6K-UI-LH12-S75
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 18...30 V DC
- Rated Operating Current
- 100 mA
- Switching Frequency
- 5...300 Hz
- Turn-off Delay
- 100 ms max
- Range
- 0...1500 mm, Adjustable
- Hysteresis
- 7 mm max (0.5 % of range)
- Polarity Reversal Protection
- Yes
- Switching Output
- PNP/NPN/IO-Link NO/NC
- Storage Temperature
- -20...80 °C
- Mounting
- Screw M3
- Ingress Rating
- IP67, IP69
- Material
- ABS, PMMA
- Laser Class
- Class 1 per IEC 60825-1
- Light Spot Size
- 2 x 3 mm at 1.5 m
- Series
- 6K
- Operating Mode
- SIO Mode, IO-Link Mode
Rated Operating Voltage24 V DC
No-load Current30 mA
Turn-on Delay100 ms max
Voltage Drop2.4 V max at rated current
Rated Operating Distance1500 mm
Distance Deviation1 % max
Short-circuit ProtectionYes
Ambient Temperature-20...50 °C
Dimensions12 x 34 x 21.6 mm
ConnectionConnector, M8x1, 4-pin
Protection ClassClass II
Light TypeLaser red light
Beam CharacteristicCollimated
Wavelength655 nm
StyleSquare
