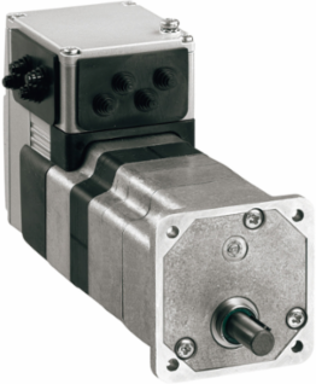

Schneider Electric ILE2T662PC1A0 Brushless DC Motor 140mm, 162W/262W, Modbus TCP, Industrial Connector
- MPN: ILE2T662PC1A0
- PPN: SCH-ILE2T662PC1A0
CAD
$2444.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for superior performance in various automation and control applications, this brushless DC motor by Schneider Electric stands out with its robust design and impressive specifications. With power ratings of 162W and 262W, it provides reliable and efficient motion control essential for demanding industrial environments. The integration of Modbus TCP communication enhances its connectivity options, making it a versatile choice for modern automation systems. Its industrial connector is designed for seamless integration, ensuring optimal functionality within your operational setup.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 0.8 N.m at 24 V and 48 V
- Nominal Torque
- 0.5 N.m at 24 V and 48 V
- Nominal Speed
- 3100 rpm at 24 V, 5000 rpm at 48 V
- Maximum Mechanical Speed
- 7000 rpm
- Maximum Axial Force
- 30 N
- Maximum Supply Current
- 0.1 A (power stage disabled), 7 A at 48 V, 9.5 A at 24 V
- Discrete Output Voltage
- 23-25 V
- Protection Type
- Short circuit output voltage, Safe torque off, Overload output voltage
- Voltage State 0 Guaranteed
- -3 to 4.5 V
- Voltage
- 24 V, 48 V
- Phase
- Single phase
- Number of Motor Stacks
- 2

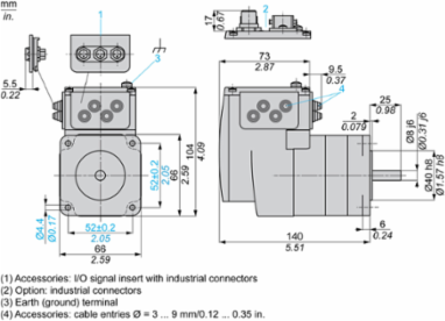

- Length
- 140 mm (5.51 in)
- Shaft Length
- 25 mm (0.98 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Mounting Holes Diameter
- 4.4 mm (0.17 in)
- Mounting Support
- Flange
- Feedback Type
- BLDC encoder
- Rotor Inertia
- 0.34 kg.cm²
- Service Life
- 20000 h (bearing)
- Product Certifications
- cUL, UL, TUV
- Operating Altitude
- <= 1000 m without derating
- Permissible Ambient Air Temperature
- 105 °C power amplifier, 110 °C motor
- Relative Humidity
- 15 to 85% without condensation
- Shock Resistance
- 150 m/s², 1000 shocks
- Country of Origin
- Germany
- Rohs Exemption Information
- Yes
Nominal Output Power162 W at 24 V, 262 W at 48 V
Supply Voltage Limits18-55.2 V
Continuous Stall Torque0.54 N.m
Maximum Radial Force80 N
Current Consumption7000 mA peak, 5500 mA continuous
Discrete Input Current10 mA, 3 mA, 2 mA at 24 V
Maximum Switching Current100 mA per output, 200 mA total
Transmission Rate10, 100 Mbits
Voltage State 1 Guaranteed15 to 30 V
Motor TypeBrushless DC motor
Number of Motor Poles6
Motor Flange Size66 mm (2.60 in)
Shaft Diameter8 mm (0.31 in)
Centring Collar Diameter40 mm (1.57 in)
Number of Mounting Holes4
Circle Diameter of the Mounting Holes73.54 mm (2.90 in)
Electrical ConnectionIndustrial connector
Shaft EndUntapped
Type of CoolingNatural convection
MarkingCE
StandardsIEC 60072-1, EN 61800-3, IEC 50347, IEC 61800-3 Ed 2, IEC 50178
Ambient Air Temperature for Operation0 to 40 °C without derating, 40 to 55 °C with derating
Ambient Air Temperature for Storage-25 to 70 °C
Vibration Resistance20 m/s² (10 to 500 Hz), 10 cycles
IP Degree of ProtectionIP41 shaft bushing, IP54 total except shaft bushing
Pvc FreeYes
Mercury FreeYes
