Schneider Electric ILE2K661PC1A0 Brushless DC Motor, 24-48V, 122mm Length, 4800-6000 RPM, IP54
Schneider Electric ILE2K661PC1A0 Brushless DC Motor, 24-48V, 122mm Length, 4800-6000 RPM, IP54
- MPN: ILE2K661PC1A0
- PPN: SCH-ILE2K661PC1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2189.32/ EA
Description
This brushless DC motor from Schneider Electric is engineered for high efficiency and reliability, ideal for a variety of automation and control applications. Operating at a voltage range of 24-48V, it delivers impressive speeds of 4800 to 6000 RPM, ensuring optimal performance for demanding tasks. With a length of 122mm and an IP54 rating, this motor is designed to withstand challenging environments while providing dependable operation. Its robust construction and advanced design make it a valuable component for enhancing the operational capabilities of your systems in the field of motors, drives, and control.
Specifications
- Rated Supply Voltage
- 24 V, 48 V
- Nominal Torque
- 0.26 N.m (24 V, 48 V)
- Peak Stall Torque
- 0.43 N.m (24 V, 48 V)
- Detent Torque
- 0.08 N.m
- Maximum Axial Force Fa
- 30 N (force pressure), 30 N (tensile force)
- Maximum Supply Current
- 0.1 A (power stage disabled), 6.8 A (24 V), 3.8 A (48 V)
- Associated Fuse Rating
- 16 A
- Motor Type
- Brushless DC motor
- Phase
- Single phase
- Transmission Rate
- 125, 250, 500 kbauds
- Electrical Connection
- Industrial connector
- Gear Box Type
- Without
- Winding Type
- Medium speed of rotation and medium torque
- Speed Feedback Resolution
- 12 points/turn
- Rotor Inertia
- 0.17 kg.cm²
- Motor Flange Size
- 66 mm (2.60 in)
- Centring Collar Depth
- 2 mm (0.08 in)
- Mounting Holes Diameter
- 4.4 mm (0.17 in)
- Shaft Diameter
- 8 mm (0.31 in)
- Shaft End
- Untapped
- Number of Motor Stacks
- 1
- Protection Type
- Safe torque off, overload of output voltage, short circuit of the output voltage
- IP Degree of Protection
- IP41 shaft bushing, IP54 total except shaft bushing (IEC 60034-5)
- Marking
- CE
- Ambient Air Temperature for Operation
- 0-40 °C without derating, 40-55 °C with 2% power derating per °C
- Ambient Air Temperature for Storage
- -25 to 70 °C
- Relative Humidity
- 15-85 % without condensation
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Material
- Pvc Free, Mercury Free
- China Rohs Regulation
- X
- Color
- N/A
Nominal Speed4800 rpm (24 V), 6000 rpm (48 V)
Maximum Mechanical Speed7000 rpm (24 V), 6500 rpm (48 V)
Continuous Stall Torque0.28 N.m
Maximum Radial Force Fr80 N
Nominal Output Power131 W (24 V), 163 W (48 V)
Current Consumption7000 mA peak, 5500 mA maximum continuous
Maximum Switching Current100 mA per output, 200 mA total
Number of Motor Poles6
Network TypeDC
Communication InterfaceEthernet/IP, integrated
Holding BrakeWithout
Reduction Ratio1:1
Feedback TypeBLDC encoder
Accuracy Error+/- 0.5 °

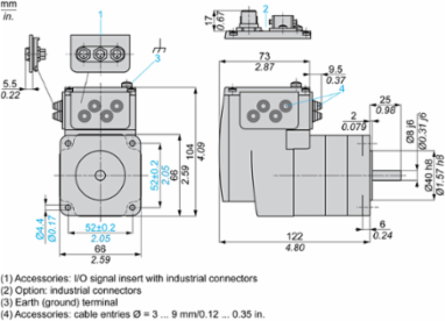

Length122 mm (4.80 in)
Centring Collar Diameter40 mm (1.57 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes73.54 mm (2.90 in)
Shaft Length25 mm (0.98 in)
Mounting SupportFlange
Supply Voltage Limits18...55.2 V
Type of CoolingNatural convection
Product CertificationscUL, UL, TUV
StandardsEN 61800-3, IEC 50178, IEC 60072-1, IEC 50347
Permissible Ambient Air Temperature Around Device105 °C power amplifier, 110 °C motor
Operating Altitude≤1000 m without derating
Vibration Resistance20 m/s² (10-500 Hz) 10 cycles IEC 60068-2-6
Service Life in Hours20000 h bearing
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
BrandLexium integrated drive
