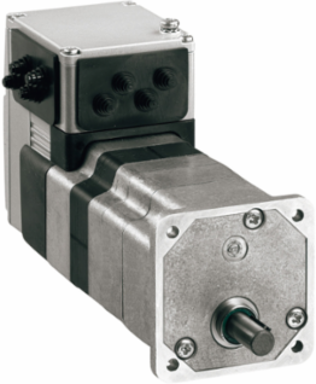

Schneider Electric ILE2K662PB1A0 Brushless DC Motor, 140mm, 24-48V, EtherNet/IP, 162W Output
Schneider Electric ILE2K662PB1A0 Brushless DC Motor, 140mm, 24-48V, EtherNet/IP, 162W Output
- MPN: ILE2K662PB1A0
- PPN: SCH-ILE2K662PB1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1947.18/ EA
Description
The Schneider Electric ILE2K662PB1A0 Brushless DC Motor exemplifies cutting-edge technology in the realm of motion control and automation. Engineered for high efficiency, this motor operates within a voltage range of 24 to 48V, delivering a robust output of 162W, which makes it suitable for a variety of demanding applications. Its compact 140mm design ensures versatility in integration into various systems, while the EtherNet/IP connectivity enhances communication and control across networks, making it an ideal choice for modern automated solutions. With its reliable performance and smart engineering, this brushless motor is a valuable asset for those seeking precision and efficiency in their machinery.
Specifications
- Nominal Output Power
- 162 W 24 V || 262 W 48 V
- Nominal Torque
- 0.5 N.m 24 V || 0.5 N.m 48 V
- Continuous Stall Torque
- 0.54 N.m
- Maximum Mechanical Speed
- 7000 rpm || 5000 rpm
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Voltage State 0 Guaranteed
- -3...4.5 V
- Supply Voltage Limits
- 18-55.2 V
- Motor Type
- brushless DC motor
- Phase
- single phase
- Electrical Connection
- printed circuit board connector
- Gear Box Type
- without
- Transmission Rate
- 125, 250, 500 kbauds

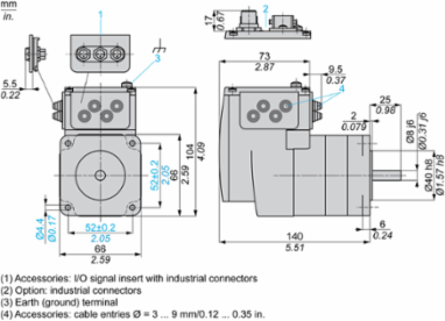

- Motor Flange Size
- 66 mm
- Centring Collar Diameter
- 40 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 73.54 mm
- Shaft End
- untapped
- Shaft Length
- 25 mm
- Rotor Inertia
- 0.34 kg.cm²
- Maximum Axial Force
- 30 N force pressure || 30 N tensile force
- Net Weight
- 1.75 kg
- Relative Humidity
- 15-85 % without condensation
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier || 110 °C motor
- Operating Altitude
- <= 1000 m without derating
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Product Certifications
- UL || TÜV || cUL
- Standards
- IEC 50347 || IEC 50178 || IEC 61800-3 Ed 2 || IEC 60072-1 || EN 61800-3 2001-02 || IEC 61800-3 || EN 61800-3 second environment
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (product out of EU RoHS legal scope)
Nominal Speed3100 rpm 24 V || 5000 rpm 48 V
Peak Stall Torque0.8 N.m 24 V || 0.8 N.m 48 V
Detent Torque0.106 N.m
Current Consumption7000 mA peak || 5500 mA maximum continuous
Maximum Supply Current0.1 A (power stage disabled) || 7 A 48 V || 9.5 A 24 V
Voltage State 1 Guaranteed15...30 V
Rated Supply Voltage24 V || 48 V
Number Of Motor Poles6
Communication InterfaceEthernet/IP, integrated
Holding Brakewithout
Reduction Ratio1:1
Mounting Supportflange
Number Of Motor Stacks2
Centring Collar Depth2 mm
Mounting Holes Diameter4.4 mm
Feedback TypeBLDC encoder
Shaft Diameter8 mm
Speed Feedback Resolution12 points/turn
Maximum Radial Force80 N
Length140 mm
Type Of Coolingnatural convection
Ambient Air Temperature For Operation0-40 °C without derating || 40-55 °C with 2% per °C derating
Ambient Air Temperature For Storage-25-70 °C
Vibration Resistance20 m/s² 10-500 Hz, 10 cycles IEC 60068-2-6
IP Degree Of ProtectionIP41 shaft bushing || IP54 total except shaft bushing
MarkingCE
Pvc FreeYes
China Rohs RegulationX
Rohs Exemption InformationYes
