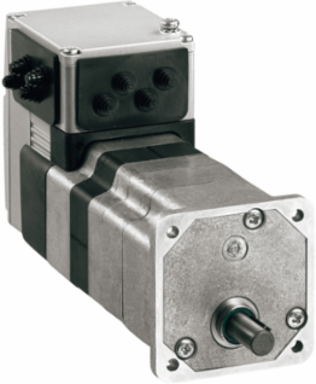

Schneider Electric ILE2K662PC1A0 Brushless DC Motor, 140mm, 24-48V, Ethernet/IP, Industrial Connector

MPN: ILE2K662PC1A0
PPN: SCH-ILE2K662PC1A0
UNSPSC: 26111515

$2342.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Elevate your motion control applications with the Schneider Electric ILE2K662PC1A0 Brushless DC Motor, specifically designed for efficient performance in demanding industrial environments. This robust motor operates within a voltage range of 24-48V, making it adaptable for various automation scenarios. With a compact 140mm size and the integration of Ethernet/IP for seamless connectivity, it facilitates effective monitoring and control of operations. The inclusion of an industrial connector ensures reliable and secure installation, positioning it as an essential component for enhancing the reliability and efficiency of your automation systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany

Weight	2000 g

Communications & Management Attributes

Communication Interface	Ethernet/IP, Integrated

Physical Attributes

Motor Flange Size	66 mm

Shaft Length	25 mm

Complementary Attributes

Maximum Axial Force Fa	30 N force pressure), 30 N tensile force)
Us Rated Supply Voltage	48 V, 24 V
Maximum Supply Current	0.1 A power stage disabled)7 A 48 V9.5 A 24 V

Maximum Mechanical Speed	5000 rpm, 7000 rpm
Maximum Radial Force Fr	80 N
Maximum Switching Current	100 mA per output200 mA total

Important Information Attributes

Coefficient 1 1	-0.0002834 N.m/rpm, -0.0002834 N.m/rpm
Nominal Torque	0.5 N.m 24 V, 0.5 N.m 48 V
Protection Type	safe torque off, overload of output voltage, short circuit of the output voltage
Voltage State 0 Guaranteed	-3...4.5 V, -3...4.5 V
Carbon Footprint Of The Distribution Phase A4	0.7109788896604147, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.7082581058768225, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	176 kg CO2 eq., 175.6503196792523
Local Publishable Date	2026-01-12
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Centring Collar Diameter	40 mm
Coefficient 1 0	1.47393 N.m
Coefficient M0	5.80645E-06 N.m/rpm
Compatibility Code	ILE
Current Consumption	7000 mA peak5500 mA maximum continuous
Detent Torque	0.106 N.m
Electrical Connection	industrial connector
Gear Box Type	without
Marking	CE
Mounting Holes Diameter	4.4 mm
Network Number Of Phases	1
Nominal Speed	3100 rpm 24 V5000 rpm 48 V
Number Of Motor Stacks	2
Phase	single phase
Product Or Component Type	motion integrated drive
Reduction Ratio	1:1
Rotor Inertia	0.34 kg.cm²
Service Life In Hours	20000 h bearing
Shaft End	untapped
Sizing Reference	ILE2_662_A0
Speed Feedback Resolution	12 points/turn
Sustainable Packaging	No
Transmission Rate	125, 250, 500 kbauds
Vibration Resistance	20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1	3363.798 rpm
Voltage 2	48 V
Voltage 2 Speed 2 Max	5000 rpm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Length Total	140 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	88

Coefficient 2 1	-0.0024 N.m/rpm, -0.0024 N.m/rpm
Peak Stall Torque	0.8 N.m 24 V, 0.8 N.m 48 V
Supply Voltage Description	single phase 48 V DC, single phase 24 V DC
Certificate Agency	UL, cUL, TÜV
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 2.5364163003703855
Carbon Footprint Of The Manufacturing Phase A1 To A3	22 kg CO2 eq., 22.024919290534683
Local Data Status	Publishable
Return Indicator	N
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2011005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Associated Fuse Rating	16 A
Circle Diameter Of The Mounting Holes	73.54 mm
Coefficient 2 0	2 N.m
Coefficient M0 Max	8E-06 N.m/rpm
Continuous Stall Torque	0.54 N.m
Curve Type	lin
Device Short Name	ILE
Feedback Type	BLDC encoder
Holding Brake	without
Motor Type	brushless DC motor
Mounting Support	flange
Network Type	DC
Number Of Motor Poles	6
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Lexium integrated drive
Returnability	No
Second Shaft	without second shaft end
Shaft Diameter	8 mm
Shock Resistance	150 m/s² 1000 shocks IEC 60068-2-29
Software Version	v6.2.5-6
Supply Voltage Limits	18-55.2 V
Total Lifecycle Carbon Footprint	202 kg CO2 eq.
Type Of Cooling	natural convection
Voltage 1	24 V
Voltage 1 Speed 1 Max	2301.452 rpm
Voltage 2 Speed 2	6234.1598 rpm
Voltage State 1 Guaranteed	15...30 V
Winding Type	medium speed of rotation and medium torque
Data Source	extrapolated product
Input/Output Type	4 signals (each be used as input or output)
Customs Code	8501512040
Functional Unit Description	To coordinate and synchronize motion control with burshless DC motor 70% of the time for 10 yearsTo coordinate and synchronize motion control with burshless DC motor 70% of the time for 10 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1673.16

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	201.6308922656946
Circularity Profile	ENVEOLI2011005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	105 °C power amplifier110 °C motor
Relative Humidity	15-85 % without condensation
Pep Verification Date	2026-08-26
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	40-55 °C (with power derating of 2 % per °C)0-40 °C (without derating)
Environmental Disclosure	ENVPEP2011005EN
Ip Degree Of Protection	IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2011005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
