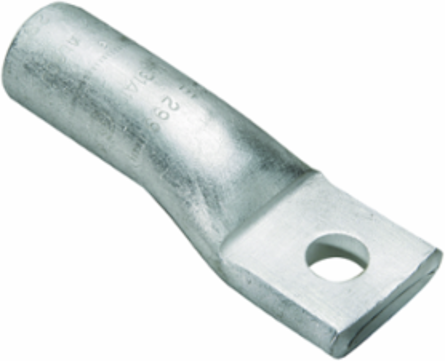

Burndy YA40A1 HYLUGTM Uninsulated Aluminum Compression Terminal, 800 kcmil, 1 Hole, 35 kV
- MPN: YA40A1
- UPC: 781810762264
- PPN: BUR-537006
CAD
$197.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-9/16 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - D inch
- 1.87 in
- Dimension - Hole Size mm
- 18 mm
- Dimension - Length Overall inch
- 6.12 in
- Dimension - Outside Diameter inch
- 1.65 in
- Dimension - Thread Size
- 5/8 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.56 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size inch0.69 in
Dimension - L Length Overall mm155 mm
Dimension - N inch0.88 in
Dimension - Pad Width inch1.65 in
Dimension - Z inch0.99 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 800 kcmil
- Conductor - Copper Str Size
- 800 kcmil
Conductor - AL Str Size Range800 kcmil
Conductor - Copper Str Size Range800 kcmil
General
- Color Code
- Gray
- Die Index
- 474
- Feature - Barrel Type
- Standard
- Material
- Aluminum
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC 12 Digit
- 7818107622644
Connector TypeTerminal
Feature - Barrel StyleChamfered
Item Type4D
Physical Attribute - Number of Holes1
PlatedY
Temperature Rating194
UPC781810762264
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
