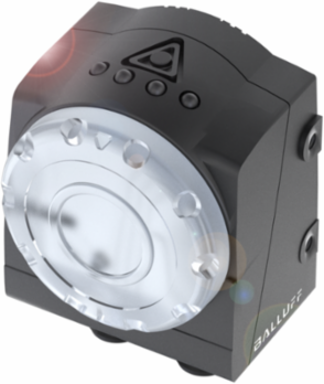

Balluff BVS UR-3-105-E Universal Vision Sensor, CMOS Image Sensor, Range 50-1000 mm, IP54
Balluff BVS UR-3-105-E Universal Vision Sensor, CMOS Image Sensor, Range 50-1000 mm, IP54
- MPN: BVS UR-3-105-E
- PPN: BAL-BVS001F
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The Balluff Universal Vision Sensor is a cutting-edge solution designed for precision detection and identification tasks in various industrial applications. Featuring a high-performance CMOS image sensor, this device operates effectively within a range of 50 to 1000 mm, making it ideal for tasks such as barcode scanning, 2D recognition, and OCR identification. With a robust aluminum housing and an IP54 rating, it is built to withstand challenging environments while delivering reliable performance at an operating voltage of 22 to 26 VDC. The sensor boasts an impressive detection rate of up to 360 Hz and offers three PNP normally open outputs, ensuring seamless integration into your existing systems. Whether you're in need of 360-degree detection or high-resolution imaging, this versatile sensor is engineered to meet the demands of modern automation.
Specifications
Specifications
- Country of Origin
- Italy
- Image resolution
- 0.3 MP (640 x 480 pixels)
- Application
- 360° detection; Barcode-, 2D-, OCR identification
- Field of view
- 34 x 25 mm ... 676 x 507 mm
- Light type
- Infrared
- Dimension
- 51.5 x 70 x 40 mm
- Interface
- RS232 (9.6...115.2 kBaud)
- Connection 2
- M12x1-Male, 4-pin, D-coded
- Ambient temperature
- -10...55 °C
- IP rating
- IP54
Sensor type VisionCMOS image sensor black-white
Detection rate typ.3…40 Hz
Range50...1000 mm
Focal length6.0 mm
Housing materialAluminum, Die casting, Painted; ABS
Switching output3x PNP Normally open (NO)
Connection 1M12x1-Male, 8-pin, A-coded
Operating voltage Ub22...26 VDC
Approval/ConformityCE; cULus; WEEE
