Vision Sensor 0.3 MP, 16.0 mm Focal Length, IR, IP54
Balluff

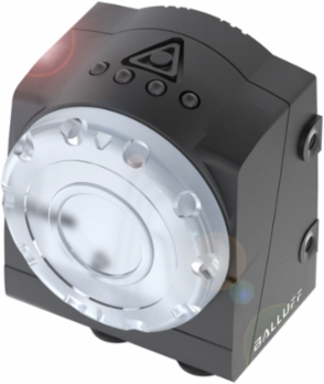

Balluff BVS UR-3-107-E Vision Sensor 0.3 MP, 16.0 mm Focal Length, IR, IP54

  • MPN: BVS UR-3-107-E
  • PPN: BAL-BVS001K
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Balluff BVS UR-3-107-E Vision Sensor is a sophisticated imaging solution designed to enhance automation processes through its advanced features and reliable performance. With a 0.3 MP resolution and a focal length of 16.0 mm, this sensor excels in various applications, including 360 detection, barcode scanning, and OCR identification. Built to withstand challenging environments, it boasts an IP54 rating and operates effectively within a temperature range of -10 to 55 C, making it suitable for industrial settings. The sensor's aluminum housing and die-cast construction ensure durability, while its multiple PNP normally open switching outputs and RS232 interface facilitate seamless integration into existing systems.

Documentation & Downloads

Specifications

Additional

Operating Voltage
22...26 VDC
Switching Output
3x PNP Normally Open (NO)
Detection Rate
3,640 Hz
Field of View
55 x 42 mm ... 240 x 180 mm
Sensor Type
CMOS black-white
Operating Temperature Range
-10...55 C
Connection 1
M12x1-Male, 8-pin, A-coded
Interface
RS232 (9.6...115.2 kBaud)
Approval/Conformity
CE; cULus; WEEE
Focal Length16.0 mm
Range230...1000 mm
Image Resolution0.3 MP (640 x 480 pixels)
Light TypeInfrared
IP RatingIP54
Housing MaterialAluminum, Die casting, Painted; ABS
Connection 2M12x1-Male, 4-pin, D-coded
Country of OriginItaly
