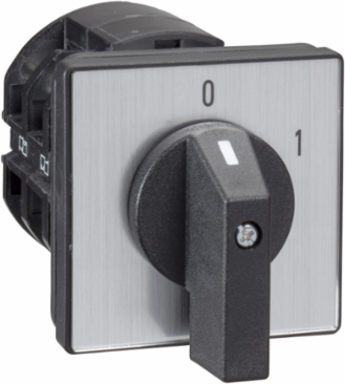

Schneider Electric K63C003HP Harmony K Front Mounting Cam Switch, 3 Poles, 63A, 64x64mm
- MPN: K63C003HP
- PPN: SCH-K63C003HP
CAD
$226.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Harmony K Front Mounting Cam Switch is designed for optimal performance in various automation and control applications. With a robust construction and a current rating of 63A, this cam switch is tailored to provide reliable switching for three poles, making it ideal for managing electrical circuits efficiently. Its 64x64mm size allows for easy integration into control panels, while its durable design ensures longevity in demanding environments. This component is a vital part of any professional setup, ensuring functionality and safety in electrical control systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 63 A
- Short-Circuit Current
- 10,000 A
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Switching Angle
- 90°
- Positive Opening
- with
- Tightening Torque
- 2.5 N·m
- IP Degree of Protection
- IP40 IEC 60529
- Fixing Mode
- 4 holes
- Size
- 64 x 64 x 111 mm (W x H x D)
- Product Certifications
- cULus 120 V 3 hp 1 phase, cULus 480 V 25 hp 3 phases, cULus 240 V 7.5 hp 1 phase, cULus 240 V 10 hp 3 phases
- Electrical Shock Protection Class
- Class II IEC 60536, Class II NF C 20-030
- Ambient Air Temperature for Storage
- -40 to 70 °C
- Color
- black
- Product Mounting
- front mounting
- Component Name
- K63
Poles3P
Short-Circuit Protection80 A cartridge fuse gG
Rated Impulse Withstand Voltage6 kV IEC 60947-1
Contact Operationslow-break
Electrical Connectioncaptive screw clamp terminals flexible 2 x 10 mm², solid 2 x 16 mm²
Mechanical Durability300,000 cycles
Mounting Typefront mounting
Operator Typeblack handle
StandardsIEC 60947-3
Protective TreatmentTC
Ambient Air Temperature for Operation-25 to 55 °C
Net Weight0.345 kg
Range of ProductHarmony K
Cam Switch Functionswitch
