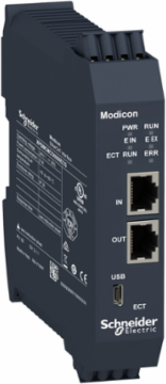

Schneider Electric XPSMCMCO0000ECG EtherCAT Diagnostic Expansion Module 24V DC, IP20, 100 Mbit/s

  • MPN: XPSMCMCO0000ECG
  • PPN: SCH-XPSMCMCO0000ECG

CAD

$1143.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

EtherCAT Diagnostic Expansion Module 24V DC, IP20, 100 Mbit/s

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Italy
Depth114.5 mm

Communications & Management Attributes

Communication Port Protocol
EtherCAT

Complementary Attributes

Maximum Cable Distance Between Devices
100 m

Important Information Attributes

Cable Cross Section
0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
Vibration Resistance
+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Carbon Footprint Of The Distribution Phase [A4]
0.0392293066, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.2461275193, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
108 kg CO2 eq., 107.71
Local Publishable Date
2025-11-25
Stocking Flag
Y
Device Type
PLC System - PLC Component
Traceability
Yes
Average Life Duration
20 year(s)
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1847
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Connector Type
RJ45
Device Short Name
XPSMCM
Electromagnetic Compatibility
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Method Of Access
server
Number Of Port
2
Power Dissipation In W
3 W
Product Or Component Type
non-safe communication module
Range Of Product
Modicon MCM
Service Life
20 year(s)
Software Version
v5.9.4
Total Lifecycle Carbon Footprint
117 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; IT
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal
99 mm
[Us] Rated Supply Voltage
24 V - 20...20 % DC
Nbr. Of Units In Pkg.
1
Take-back
No
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
107.57
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
2744.2
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
2.0123
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
160.15
Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
1.0492
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
3271.2
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
2744.2
Local SignallingLED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external error, LED green/red ERR communication error, LED green/red STS operating
Certificate AgencycULus, RCM, TÜV
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3349220434
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 8.4579794651
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Use Carbon Footprint107.71
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Product Kit IdentifierN
Current Consumption0.125 mA
Electrical Connectionspring terminal
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Sustainable PackagingNo
Transmission Rate100 Mbit/s for full duplex
Pep CodeENVPEP2403017_V1
Pep Verification Date2023-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor safety sensor signals and provide data to a CPU at 3W during 10 years with a 100% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh262.8
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal22.5 mm
Connections - Terminals2 spring clamp terminals, removable terminal block
Package Weight(Lbs)213.0 g
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]107.71
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]1160
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]2.1432
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]15.498
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2744.2
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]526.96
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]526.96

Environment Attributes Main

Ambient Air Temperature For Operation
-10-55 °C, -10-55 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP2403017_V1
Ip Degree Of Protection
IP20
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Relative Humidity
10-95 %
Pep Verification Date
2023-11-01
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint116.7882583344
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2403017_V1
Pcr VersionPEP-PCR-ed4-2021 09 06

General Attributes

Product Or Component Type
non-safe communication module
Range Of ProductModicon MCM

ETIM

ETIM 8
EC001423
ETIM 9EC001423
