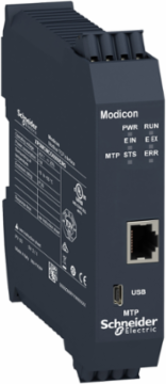

Schneider Electric XPSMCMCO0000EMG Modbus TCP/IP Diagnostic Expansion Module, 24V DC, IP20
Schneider Electric XPSMCMCO0000EMG Modbus TCP/IP Diagnostic Expansion Module, 24V DC, IP20
- MPN: XPSMCMCO0000EMG
- PPN: SCH-XPSMCMCO0000EMG
- UNSPSC: 32151705
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1079.08/ EA
Description
Modbus TCP/IP Diagnostic Expansion Module, 24V DC, IP20
Features
- Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
- Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
- Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
- Modicon MCM safety controller are designed for monitoring multiple safety functions
- Increase profitability: Safety designed from standalone components to embedded safety network solutions
- Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
- Simplify integration: Wide range of connections for machine controllers
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP
Conformance Attributes
- Product Certifications
- cULus, RCM, TÜV
Complementary Attributes
- Maximum Cable Distance Between Devices
- 100 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
- Local Signalling
- LED green PWR power ON, LED green RUN operating, LED red E IN internal error, LED red E EX external error, LED green/red NET connection state, LED green/red STS communication status
- Local Data Status
- Publishable
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 0.125 mA
- Electrical Connection
- spring terminal
- Method Of Access
- server
- Overvoltage Category
- II
- Power Dissipation In W
- 3 W
- Product Or Component Type
- non-safe communication module
- Range Of Product
- Modicon MCM
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Connections Terminals
- 2 spring clamp terminals, removable terminal block
- Stocking Flag
- Y
- Global Commercial Status
- End of commerc. announced
- Us Rated Supply Voltage5
- 24 V - 20...20 % DC
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Local Publishable Date2025-11-25
ServiceabilityNo
Field Service DivisionIDIBS
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Connector TypeRJ45
Device Short NameXPSMCM
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Package Weight Lbs210.0 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Transmission Rate10/100 Mbit/s
Us Rated Supply Voltage224 V - 20...20 % DC
Medium DescModbus TCPIP diagnostic expansion module, Modicon MCM, spring term
Product Kit IdentifierN
Connections Terminals32 spring clamp terminals, removable terminal block
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -20-85 °C
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Ambient Air Temperature For Operation-10-55 °C
IP Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- non-safe communication module
Range Of ProductModicon MCM
Specifications

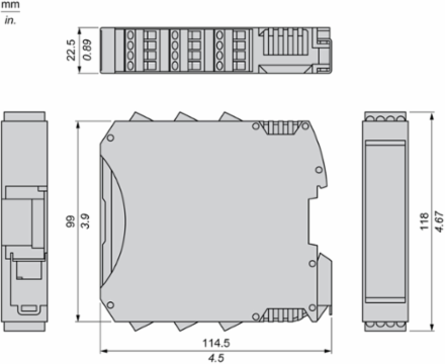

- Depth
- 114.5 mm
