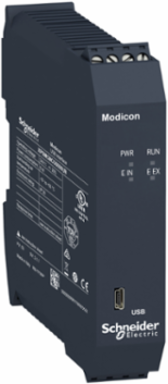

Schneider Electric XPSMCMCO0000UB Modicon MCM USB Diagnostics Module, IP20, 0.3kg, 12Mbit/s
- MPN: XPSMCMCO0000UB
- PPN: SCH-XPSMCMCO0000UB
- UNSPSC: 32151705
CAD
$632.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Modicon MCM standard ("non-safe") communication module has one Universal Serial Bus connection with a Mini USB connector. It is designed to monitor remotely your safety system with the commonly used Universal Serial Bus protocol, without additional gateways. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The non-safe communication modules are designed for diagnostics connection and data communication purposes to machine field bus or network systems. Its transmission rate is 12Mbit/s. This communication module is connected to the safety controller via the backplane expansion connector. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. The maximum cable distance between two devices is 5m. This Modicon MCM standard ("non-safe") communication module is certified by RCM, CULus and TÜV. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Features
- Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
- Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
- Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
- Modicon MCM safety controller are designed for monitoring multiple safety functions
- Increase profitability: Safety designed from standalone components to embedded safety network solutions
- Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
- Simplify integration: Wide range of connections for machine controllers
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Depth | 114.5 mm |
| Weight | 300 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | USB |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | 5 m |
|---|
| Us Rated Supply Voltage | 24 V - 20...20 % DC |
|---|
Important Information Attributes
| Cable Cross Section | 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end |
|---|---|
| Certificate Agency | cULus, RCM, TÜV |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.47866606075528256 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 5 kg CO2 eq., 5.106589890664379 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Current Consumption | 0.125 mA |
| Electrical Connection | screw terminal |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Method Of Access | server |
| Number Of Port | 1 |
| Power Dissipation In W | 3 W |
| Product Or Component Type | non-safe communication module |
| Range Of Product | Modicon MCM |
| Service Life | 20 year(s) |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 133 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Height Nominal | 99 mm |
| Nbr. Of Units In Pkg. | 1 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enable communication and data exchange between safety controllers and fieldbus networks to 4W during 10 years at a 100% use rate. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.07466476661982983, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.16714574664454726, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 127 kg CO2 eq., 127.22144640918272 |
| Local Publishable Date | 2025-11-25 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | mini B USB |
| Device Short Name | XPSMCM |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Local Signalling | LED green CONNECT operating |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | No |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Sustainable Packaging | No |
| Transmission Rate | 12 Mbit/s |
| Connections Terminals | 2 captive screw clamp terminals, removable terminal block |
| Data Source | extrapolated product |
| Width Nominal | 22.5 mm |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 21 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2606033_V1 |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Carbon Footprint | 133.04851287386674 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2606033_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | non-safe communication module |
|---|
| Range Of Product | Modicon MCM |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|---|
| ETIM 10 | EC001423 |
| ETIM 9 | EC001423 |
|---|
