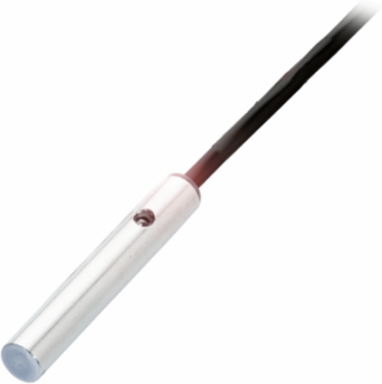

Balluff BCS G06T4E1-POM15C-EP02 Capacitive Sensor, Ø 6.5 x 42 mm, PNP NC, 11-30 VDC, IP65

Capacitive Sensor, Ø 6.5 x 42 mm, PNP NC, 11-30 VDC, IP65
  • MPN: BCS G06T4E1-POM15C-EP02
  • PPN: BAL-BCS001M

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$457.87/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 6.5 x 42 mm
Installation
for flush mounting
Switching output
PNP Normally closed (NC)
Range
0.1-1.5 mm
Housing material
Stainless steel (1.4301)
Ambient temperature
-10-70 °C
Approval/Conformity
CE, cULus, WEEE
SeriesG06
ConnectionCable, 2.00 m, PUR
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePTFE
Operating voltage Ub11-30 VDC
IP ratingIP65
