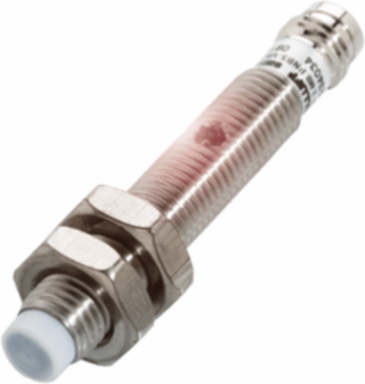

Balluff BCS M08T4E2-POM30G-S49G Capacitive Level Sensor, 8 x 54 mm, 0.1-3 mm Range, PNP NC Output
- MPN: BCS M08T4E2-POM30G-S49G
- PPN: BAL-BCS002N
CAD
$464.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Sensitivity | Switching distance adjustable |
|---|---|
| Rated Operating Distance | 3 mm |
| Operating Voltage | 11-30 VDC |
| Ambient Temperature | -10 to 70 0C |
| Ripple Max | 10 % of Ue |
| Repeat Accuracy Max | 2 % |
| Rated Operating Current | 50 mA |
| Polarity Reversal Protection | Yes |
| Dimension | 8 x 54 mm |
| Connection | Connector, M8x1-Male, 3-pin |
| Material Sensing Surface | PTFE |
| IP Rating | IP65 |
| Installation | non-flush |
| Range | 0.1-3 mm |
|---|---|
| Switching Output | PNP Normally closed (NC) |
| Switching Frequency | 100 Hz |
| Voltage Drop Static Max | 2 V |
| Hysteresis Max | 15 % |
| Temperature Drift Max | 15 % |
| No-load Current Max | 10 mA |
| Short-Circuit Protection | Yes |
| Thread Size | M8x1 |
| Tightening Torque | 6 Nm |
| Housing Material | Stainless steel (1.4301) |
| Approval/Conformity | CE, cULus, WEEE |
| Series | M08 |
