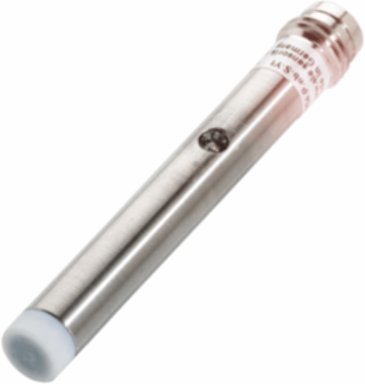

Balluff BCS G06T4D2-PSM30G-S49G Capacitive Level Sensor, Ø 6.5 x 54 mm, 0.1-3 mm Range, IP65

Capacitive Level Sensor, Ø 6.5 x 54 mm, 0.1-3 mm Range, IP65
  • MPN: BCS G06T4D2-PSM30G-S49G
  • PPN: BAL-BCS0022

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$451.00/ EA

Description

These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.

Specifications

Specifications

Dimension
Ø 6.5 x 54 mm
Installation
non-flush
Switching output
PNP Normally open (NO)
Range
0.1-3 mm
Housing material
Stainless steel (1.4301)
Ambient temperature
-10-70 °C
Approval/Conformity
CE, cULus, WEEE
SeriesG06
ConnectionConnector, M8x1-Male, 3-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePTFE
Operating voltage Ub11-30 VDC
IP ratingIP65
