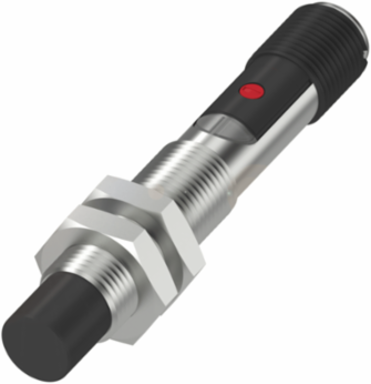

Balluff BCS M12B4E2-NOC80H-S04K Capacitive Level Sensor, 1-8 mm Range, IP67, M12x1 Thread
- MPN: BCS M12B4E2-NOC80H-S04K
- PPN: BAL-BCS00P7
CAD
$204.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Switching Frequency
- 100 Hz
- Thread Size
- M12x1
- Switching Output
- NPN Normally closed (NC)
- Housing Material
- Stainless steel (1.4305)
- Approval/Conformity
- CE, cULus, WEEE
- Connection
- Connector
- Sensitivity
- Switching distance adjustable
Range1-8 mm
InstallationNon-flush
Dimensiond8 12 x 75 mm
Material Sensing SurfacePBT
IP RatingIP67
SeriesM12
Ambient Temperature-25 to 85 b0C
